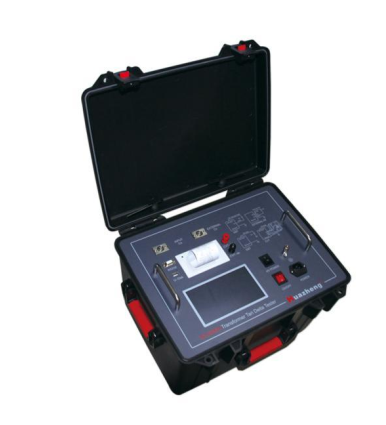

Huazheng HZ-2000H(12kV) ອຸປະກອນທົດສອບຄວາມຈຳກັດຄວາມຈຳກັດແລະ Tan Delta (0.5～12kV, 60pF ~ 30μF)
Accuracy： Cx: ±（ readings×1%+1pF）
tgδ: ±（ readings×1%+0.00040）
Anti-interference index: frequency conversion anti-interference, can still achieve the above accuracy under the interference of 200%.
Capacitance range：
Internal high voltage： 3pF～60000pF/12kV 60pF～1μF/0.5kV
External high voltage： 3pF～1.5μF/12kV 60pF～30μF/0.5kV
Resolution: up to 0.001 pF, 4-bit significant digits
Tgδ range： no limi,The resolution is 0.001%. The capacitance, inductance and resistance can be identified automatically.
Test current range： 10μA～5A
Internal high voltage：
Setting Voltage Range： 0.5～12kV
Maximum output current： 200mA
Boost and drop voltage mode: the voltage is set at will. Such as 5123 v.
Test frequency: 40-70Hz single frequency can be set at will. For example, 48.7 Hz.
50± 0.1Hz to 50±10Hz automatic dual frequency conversion optional setting.
60± 0.1Hz to 60±10Hz automatic dual frequency conversion optional setting.
Frequency accuracy: ±0.01Hz
External high voltage: maximum test current 5A, power frequency or frequency conversion of 40-70Hz during positive connection
Maximum test current 10kV/5A, power frequency or frequency conversion 40-70Hz
CVT self-excitation method low voltage output: output voltage 3～50V, output current 3～30A
Measurement time: about 40s, related to measurement method
Input power: 180V ~ 270VAC, 50Hz±1%, municipal or generator power supply
Computer interface: standard RS232 interface, U disk socket (automatic U disk storage data).
Printer: micro thermal printer
Environment temperature: -10℃ ~ 50℃
Relative humidity: <90%
Overall dimension: 430×330×350mm
Weight: 28kg
