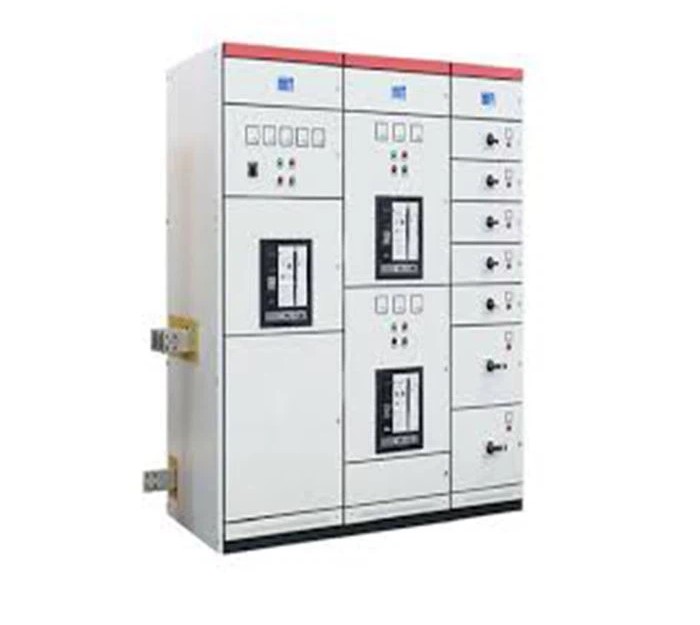

Huazheng GGD ປະເພດ AC ຕ່ໍາແຮງດັນໄຟຟ້າຄົງທີ່ Switchgear ການແຜ່ກະຈາຍ (660V)

Rated insulation voltage：660V

Rated working frequency：50Hz（60Hz）

The rated working voltage of the auxiliary circuit：ACl00、220、380V；DC110、220V（Can be customized according to local national standards）；

Rated working current：400A、630A、800A、1000A、1250A、1600A

Rated short-circuit breaking current：30kA.

Rated peak withstand current:：63kA.

Rated short-time withstand current：30kA.

Universal circuit breaker: DW15 series and other advantages of segmentation ability manufacturers electrical products, current levels include: 1600A, 400A.

Open knife switch: HD13 series and other high-quality switch-type electrical products with large flow capacity.

Copper row: The main busbar adopts tin-plated high-quality conductors such as TMY-10×100mm, and the PE grounding row adopts tin-plated high-quality conductors such as TMY-8×100mm, which has strong flow capacity.

Insulation parts: DMC series insulation parts, strong hardness, high temperature resistance.

Housing: protection class：IP30.

Dimensions：2200×（800~400）×（1000~600）mm(height × width × depth)，material: 1.5mm steel plate.
