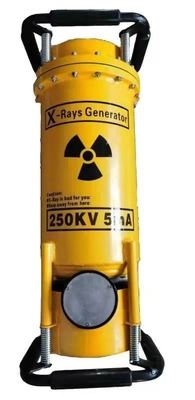

HUATEC XXG-2505CX Super Light 1.5mm Focus Spot Portable X Ray Flaw Detector Machine for Welding (1.5mm)
Technical specifications:
(1) Pipe voltage range: directional 250kV
(2) Tube current range: 5mA
(3) Focus size: ≤1.5*1.5
(4) Maximum penetration (Fe) : ≥40mm
(5) Cooling mode: air cooling
(6) Type of ray tube: cermet tube
(7) controller display mode:; Digital display. KV/T
(8) Other parameters:
A. Intelligent automatic test function
B. Automatic over-voltage, over-current, under-voltage, under-current and over-temperature alarm function of the ray tube
C. Pause the function. (Exposure or training can continue after suspension)
D. Precise timing function
(9) Use of environmental conditions
Ambient temperature range: -15 ° to +50°
Ambient humidity: ≤90%
(10) Generator size: 220*220*550mm weight: 17.4kg
(Normal model: 240*240*600mm Weight: 24.4kg
Control machine size: 320*270*180mm weight: 8KG
Standard Delivery
Directional glass X-ray tube: 1 Pcs
Generator:1 Set
High voltage joins cable: 1 Pcs- 25 Meters
Controller: 1 Set
Power cable: 1 Pcs- 10 Meters
Grounding cable: 1 Pcs- 5 Meters
Accessories : 1 Set
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
