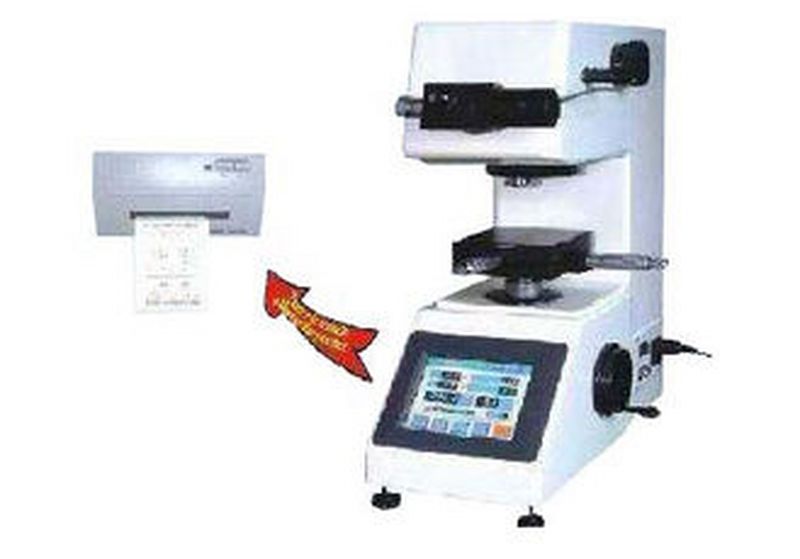

Huatec XHV-1000 Integrated Optical Micro Vickers Hardness Tester Digital 110V / 220V 5 - 60s
Specifications:
- Test Forces:(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N (10, 25, 50, 100, 200, 300, 500, 1000) gf
- Carriage Control: automatic ( loading / holding-up of the load / unloading )
- Amplification of the Microscope: 200 ×, 400 ×
- Dwell Time of the Test Force: (5-60)s
- Min. Graduation Value of the Testing Drum Wheel: 0.0625um
- Testing Field: 1HV—2967HV
- Dimension of the XY Table: 100 × 100 mm
- Movement Field of the XY Table: 25 × 25mm
- Max. height of the specimen : 70 mm
- Max. width of the specimen : 95mm
- Output : installed with a printer and a RS232 serial interface
- Light source : cold light source
- Power Supply : 110V/220V, 60/50Hz
- Dimension: (425 × 245 × 490)mm
- Weight: 30Kg
Standard Delivery of digital micro vickers hardness tester XHV-1000:
- Main unit: 1 pc
- XY-stage test table: 1 pc
- Thin specimen test table: 1 pc
- Fork-shaped test table: 1 pc
- Fine wire test table: 1 pc
- Adjustable screw: 1 pc
- 10×Digital Micro Lens:1 pc
- Micro Vickers hardness blocks (high medium): 1 pc
- Gradienter: 1 pc
