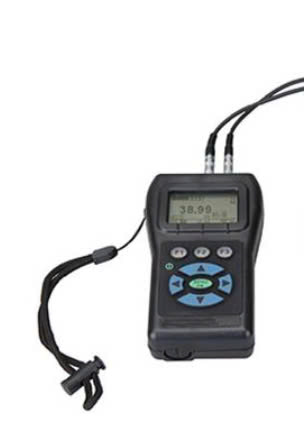

HUATEC TG-5800EX ເຄື່ອງວັດແທກຄວາມຫນາ Ultrasonic (2mm – 127mm, 0.1mm)
Measuring Range (varies by probe and material):
Without paint: 0.6mm – 508mm
Under paint: 2mm – 127mm
Measuring Resolution: 0.01mm / 0.1mm
Sound Velocity Range: 1000 – 15000mm/s
Units: mm/inch
Calibration: One-point, two-point, and automatic calibration
Receiver: 500kHz – 12MHz (3dB attenuation), Adaptive Gain Control (AGC)
Display: High-resolution LCD (64 × 128 pixels), screen size 53 × 27mm
Signal Capture: Adjustable between 4MHz and 20MHz
Reading Display: 5 digits
Coupling Indicator: No coupling will prompt "No signal"
Alarm Settings:
Max/Min alarm range: 0.01mm – 508mm
Vibration alarms:Features: Vibration alarm. The red, green and blue light indicates that the thickness is qualified, suspicious, and out of tolerance
Power Supply: 2 AA dry batteries
Auto Power Off: Adjust from 1 to 30 minutes, or select "No auto off"
Language: English
I/O Connector: Lemo 00 connector, USB interface
Operating Temperature: -10℃ to +50℃
Storage Temperature: -20℃ to +60℃
Weight: 230g (including batteries)
Overall Dimensions: 127 × 32 × 76mm
