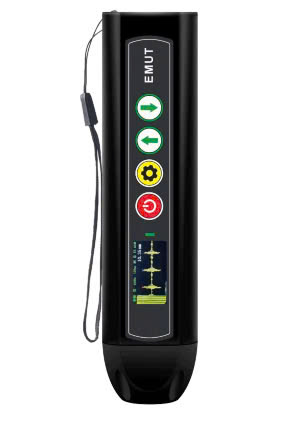

HUATEC TG-17 ເຄື່ອງວັດແທກຄວາມຫນາ Ultrasonic ຂອງແມ່ເຫຼັກໄຟຟ້າ (0.25-1000.0mm; ±0.01mm; 400～9999m/s)
Measuring range: 0.25-1000.0mm
Maximum lift-off clearance: 7mm
Detectable workpiece materials: Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum, titanium and other conductor materials
Measuring accuracy: ±0.01mm
Receive gain: 0～96dB，manual or automatic，Manual step pace 1d、automatic step pace 0.1dB
Gate mode Support switching between single and double gates
Sampling rate: 100MSPS
Measuring speed: 1～30 times/second
Sound velocity: 400～9999m/s
Average grade: 1～8 adjustable
Emission frequency: 100Hz-2000Hz adjustable，100Hz step pace
Maximum tilt angle of the probe: ±25°
The minimum diameter(curvature) of detectable workpieces: 9mm
Probe excitation method: Permanent magnet
Sound wave type: Shear wave
Waveform display: Positive half wave, negative half wave, full wave, RF wave
High temperature compensation: Equipped with high-temperature sound velocity automatic compensation function
Power supply: Built in 3.7V 3400mAh lithium battery, with a working time of no less than 5 hours
Normal operating temperature range of the host: -10~+50℃
Host storage temperature range: 0-+40℃
Host weight: 358g(Equipped with room temperature probe)
Host size: Length 178mm× Width 42mm× Thickness 32mm
