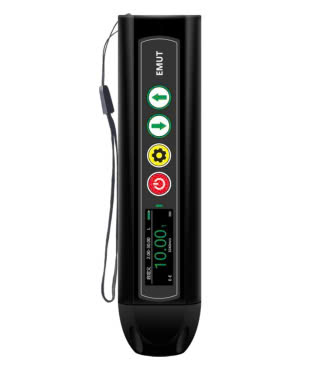

HUATEC TG-15 ເຄື່ອງວັດແທກຄວາມຫນາ Ultrasonic ແມ່ເຫຼັກໄຟຟ້າ (±0.001mm; 400～9999 m/s)
Sampling rate: 100MSPS
Bandwidth: 2.5MHz～6MHz
Launch: ± 600V_400Hz_125ns
Gain: Automatic 0～96dB，pace 1dB
Measurement accuracy: ±0.001mm
Sound velocity range: 400～9999 m/s
Effective range: 0.25～30 mm
Average level: L、M、H three-level adjustable
Lifting distance: 4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel)
Measurement type: Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials
Measurement range:
1X：0.25mm～0.50mm 2X：0.50mm～0.75mm 3X：0.75mm～1.00mm
4X：1.0mm～2.0mm 5X：2.0mm～30mm
Search mode: Frontier-Frontier mode, Wave crest-Wave crest mode, Wave crest-Frontier mode
Measurement mode: Single echo(I-E), Dual echo(E-E), Multiple echo(ME_E)
Auxiliary functions: Auto freeze, Auto gain, Auto sleep, Backlight adjustment
Revised function: Sound velocity calibration, zero calibration
Communication Interface: RS-485 or USB2.0
Charger: 5V2A, Standard Type-C interface
Display screen: 1.47 inch 320×172 IPS_LCD
Dimension: 178.4mm×42mm×32mm
Battery life: 3.7V 3400mAh Lithium battery, 6 hours of battery life
Bare weight:
A Metal shell: 358g B Injection molded shell: 255g
C Injection molded + quick release: 289g
