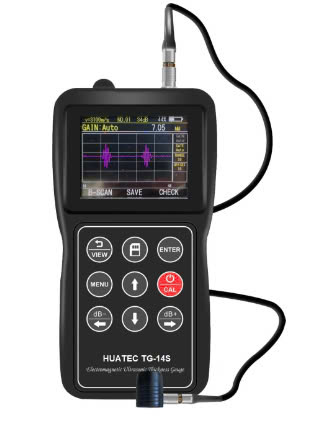

HUATEC TG-14S ເຄື່ອງວັດແທກຄວາມຫນາ Ultrasonic (1.0 ~ 240mm; 1000 ~ 9999m/s)
Measuring range: 1.0~240mm
Lifting distance: 0~3mm
Operating frequency: 3MHZ
Ambient temperature: -20 ° C to +50 ° C
High temperature sound speed compensation: automatic compensation
Temperature range: -150℃~800℃(higher temperature can be customized)
Probe type: standard room temperature probe, optional high temperature high frequency probe, high temperature low frequency probe, B scanning probe.
Resolution: 0.01mm
Adjustable range of sound speed: 1000~9999m/s
Continuous working time: 3h
Size and weight: 151*76*35mm 220g
Excitation mode: permanent magnet
Error range: ≤10mm: error ±0.05mm, > 10 mm: + / - 0.01 + H / 200 mm
(H is the thickness of the workpiece)
Power supply: 2*3.7V lithium battery/bus power supply is optional
Communication interface: RS485
