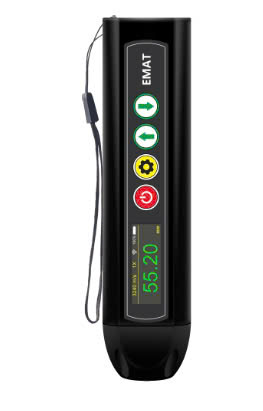

HUATEC TG-14 Ultrasonic ຂອງແມ່ເຫຼັກໄຟຟ້າ (1.5-240.0mm; 1000-9999 m/s)
Detectable workpiece material: carbon steel, cast steel, alloy steel, stainless steel,copper, aluminum, titanium and other conductor materials
Measurement range: 1.5-240.0mm,the maximum value of the measurement range is affected by the properties of the measured material, sound attenuation coefficient, surface conditions and other factors
Error range of measuring equipment: When the thickness of workpiece is less than 10mm, the error is 0.05mm; when the thickness is more than 10mm, the error is + (0.01 + H / 200) mm (H is the thickness of workpiece)
Receiving gain: ≤ 100dB
Working temperature range of high temperature probe: low carbon steel (or other ferromagnetic steel): - 150 ℃~+800 ℃; Austenitic stainless steel (or other non ferromagnetic materials): - 150 ℃~+150 ℃
Normal temperature probe: ≤ 80 ℃, 4MHz, mainly used to detect fine-grained materials, such as low carbon steel, aluminum, etc.,
High temperature probe: ≤ 800 ℃, 4MHz, mainly used to measure ferromagnetic fine-grained materials, such as low carbon steel
Maximum lifting distance: 4mm (the actual lifting distance is related to the material property and temperature). Anti rust film, salt deposit or any other insulating coating (paint, varnish, enamel, plastic, etc.) can be used as the operating gap
The minimum diameter (curvature) of the workpiece: 9mm
The maximum tilt angle of the probe: 25°
Excitation mode of probe: permanent magnet
Type of sound wave: shear wave
High temperature compensation: it has the function of automatic compensation for high temperature sound velocity
Sonic sound speed adjustment range: 1000-9999 m/s
Waveform display: positive half wave, negative half wave, full wave, RF wave, envelope wave
Power supply: built in lithium battery, working time not less than 5 hours
The normal working temperature range of the host: -10~+50℃
Host storage temperature range: 0~+40℃
Host weight: 250g (with normal temperature probe)
Dimensions of the host: length 176mm x width 42mm x thickness 32mm
