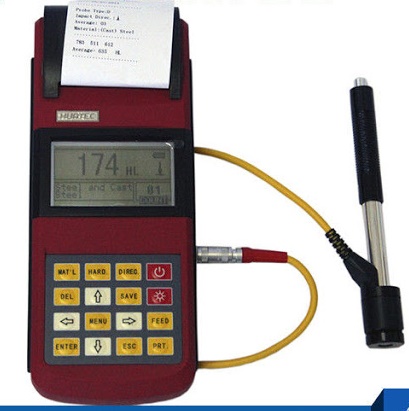

HUATEC RHL160 portable hardness tester

Name: HUATEC RHL160 portable hardness tester
Brand: HUATEC
Availability: OutOfStock

ຜູ້ຜະລິດHUATEC

ModelRHL160

ຕົ້ນກຳເນີດChina

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Measuring range:HLD(170～960)HLD

Measuring direction:360°

Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

Display:dot matrix LCD,128×64 dots

Data memory: 500 groups max.(relative to impact times 32～1)

Printing paper: width is (57.5±0.5)mm, diameter is 30mm

Battery pack: 6V NI-MH

Battery charger: 9V/500mA

Continuous working period:about 150 hours(With backlight off, no printing)

Communication interface:USB1.1

Relative humidity: ≤90％;

The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

Standard: Main Unit, D type impact device, Standard test block, Cleaning brush (I), Small support ring, Battery Charger, Paper for printing, Manual, Instrument case

Main Application

Die cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece

Features

3 inch LCD,or LED display
Wide measuring range. Based on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic materials.
Large screen(128×64 dot matrix LCD), showing all functions and parameters.
Test at any angle, even upside down.
Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
Seven impact devices are available for special application. Automatically identify the type of impact devices.
Large capacity memory could store 500 groups (Relative to average times32～1 ) information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.
Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
Battery information indicates the rest capacity of the battery and the charge status.
User calibration function.
Software to connect with PC via USB port.
With EL background light.
Thermal printer integrated, convenient for in field printing.
NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
Auto power off to save energy.
Outline dimensions:215mm×85mm×42mm

Parameters

Measuring range:HLD(170～960)HLD
Measuring direction:360°
Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
Display:dot matrix LCD,128×64 dots
Data memory: 500 groups max.(relative to impact times 32～1)
Printing paper: width is (57.5±0.5)mm, diameter is 30mm
Battery pack: 6V NI-MH
Battery charger: 9V/500mA
Continuous working period:about 150 hours(With backlight off, no printing)
Communication interface:USB1.1
Working temperature: -10℃～＋50℃;
Storage temperature:-30℃～＋60℃;
Relative humidity: ≤90％;
The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

Testing Range

Material	Method	Impact device
Material	Method	D/DC	D+15	C	G	E	DL
Steel and cast steel	HRC	20～68.5	19.3～67.9	20.0～69.5		22.4～70.7	20.6～68.2
	HRB	38.4～99.6			47.7～99.9		37.0～99.9
	HRA	59.1～85.8				61.7～88.0
	HB	127～651	80～638	80～683	90～646	83～663	81～646
	HV	83～976	80～937	80～996		84～1042	80～950
	HS	32.2～99.5	33.3～99.3	31.8～102.1		35.8～102.6	30.6～96.8
Cold work tool steel	HRC	20.4～67.1	19.8～68.2	20.7～68.2		22.6～70.2
Cold work tool steel	HV	80～898	80～935	100～941		82～1009
Stainless steel	HRB	46.5～101.7
	HB	85～655
	HV	85～802
Grey cast iron	HRC
	HB	93～334			92～326
	HV
Nodular cast iron	HRC
	HB	131～387			127～364
	HV
Cast aluminum alloys	HB	19～164		23～210	32～168
Cast aluminum alloys	HRB	23.8～84.6		22.7～85.0	23.8～85.5
BRASS(copper-zinc alloys)	HB	40～173
BRASS(copper-zinc alloys)	HRB	13.5～95.3
BRONZE(copper-aluminum/tin alloys)	HB	60～290
Wrought copper alloys	HB	45～315

Configuration

	No.	Item	Quantity	Remarks
Standard Configuration	1	Main Unit	1
	2	D type impact device	1	With cable
	3	Standard test block	1
	4	Cleaning brush (I)	1
	5	Small support ring	1
	6	Battery Charger	1	9V 500mA
	7	Paper for printing	1
	8	Manual	1
	9	Instrument case	1
Optional Configuration	11	Cleaning brush (II)	1	For use with G type impact device
	12	Other type of impact devices and support rings		Refer to Table 3 and Table 4 in the appendix.
	13	DataPro software	1
	14	Communication cable	1
