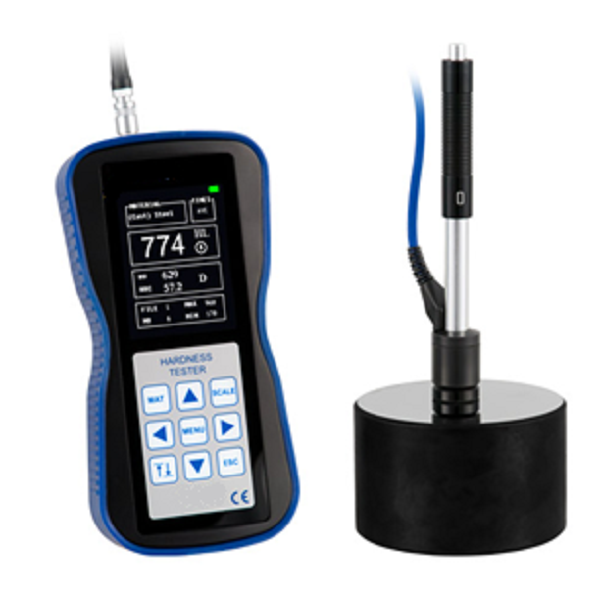

HUATEC RHL-100 ເຄື່ອງທົດສອບຄວາມແຂງຂອງວັດສະດຸຂະໜາດໃຫຍ່ (170 ... 960 HLD)
Measuring range: 170 ... 960 HLD
Reproducibility:± 6 HLD
Impactor:Type D
Measuring direction:360°
Adjustable scales: Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore
Surface quality Ra of the workpiece: 2 µm
Minimum weight of the workpiece:
- Direct measurement: 5 kg / 11 lbs
- Tied measurement: 2 ... 5 kg / 4.4 ... 11 lbs
- With coupling gel: 0.05 ... 2 kg / 0.1 ... 4.4 lbs
Minimum thickness of the workpiece
- Direct measurement: > 5mm / > 0.19 in
- With coupling gel: 0.8 ... 5 mm / 0.03 ... 0.19 in
Display: Color LCD
Internal measured value memory: 600 records in 6 files
Interface: USB, WiFi
Power supply: 2 x 1.5V AA batteries
Operating time: ca. 50 hours
Operating conditions: 10 ... 50°C / 50 ... 122°F max. 90% r.H.
Storage conditions: -30 ... 60°C / -22 ... 140°F max. 90% r.H.
Dimensions: 160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in
Weight: 350 g / < 1 lb
Standard Delivery:
1 x Durometer RHL-100
1 x Impactor D
1 x Test block
2 x 1.5V AA batteries
1 x User manual
1 x Carry case
