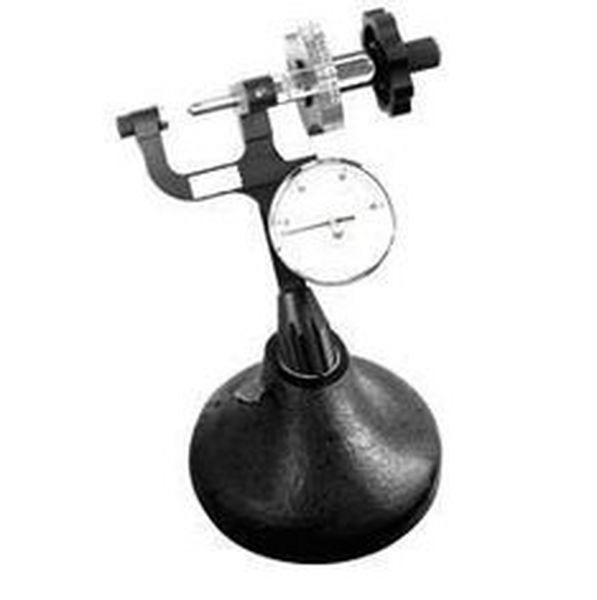

PH-1S Huatec Portable and Acurate Superficial Rockwell Hardness Tester , Multifunction Portable Hardness Tester
Main Technical Parameters
Initial Test Force: 3kg
Total Test Force: 15kg, 30kg, 45kg
Force Applying Method: By screw
Indenter: 120°diamond cone
Ф1.588mm carbide ball
Accuracy: Meets the requirements of ISO6508
Resolution: 0.5HR
Testing Range: HRN, HRT,HRW, HRX, HRY, etc. 15 scales.
Application: All metals including iron, steel copper, aluminium, zinc, lead, tin, carburized steel, nitrided steel etc.
Standard Package
Tester
Bench stand
120°diamond cone indenter
Ф1.588mm carbide ball indenter
3 superficial Rockwell test blocks
V anvil (small)
Extension (small)
Base for standard test block (magnetic)
Carrying case
Optional Accessories
120°diamond cone indenter
Ф1.588mm, Ф3.175mm carbide ball indenter
Ф1.588mm, Ф6.35mm, Ф12.7mm steel ball indenter
Standard test blocks (HR15N, HR30N,HR45N, HR15T, HR30T, HR45T)
Raised spot anvil
Slim raised spot anvil (flat top: Ф1.5mm, Ф2.5mm, Ф3.5mm)
Diamond raised spot anvil
Ball testing anvil
Spare magnifier
