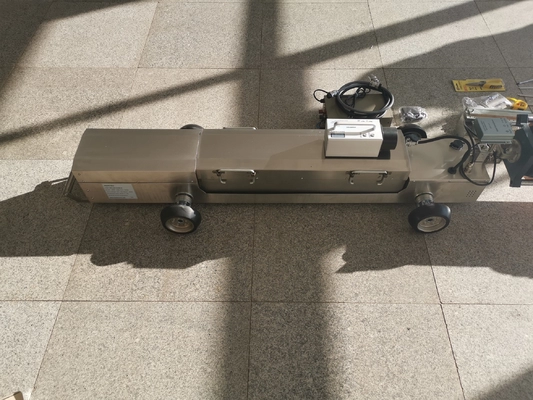

HUATEC HXPC-100B1X ເຄື່ອງກວາດ X-ray (Φ400-1100 mm, 150-250 kV, 3mA)
Applicable pipe inner diameter: Φ400-1100 mm
Cleaning pipe optimum climbing slope: 12°
Controlling method:Magnetic positioning
Output voltage: 150-250 kv
Output current: 3 mA
Exposure time: 0-3 min
Positioning accuracy: ±5 mm
Travel speed: 12 m/min
Battery voltage / capacity: 108V/7AH,108V/12AH
Non-exposure walking distance: 2000m
Applicable wall thickness: ≤34mm
Crawler Total length mm: 2100(car body 1100mm shoe 550mm)
Driving mode: Single drive
Focal spot size: 2.0*2.0
X-ray radiation angle: 360°*30°
Operating ambient temperature:-20°C to +75°C
Storage temperature: 0°C to +60°C
Applicable environmental humidity: ≤85%
Battery box weight: 21Kg,42Kg
Generator weight: 13kg
Climbing weight: 30kg
The turning radius of the crawler:＞7D
Generator type: HUATEC XXGH-2505
