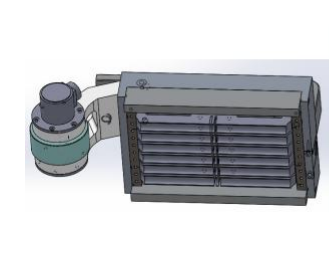

HUATEC HRD-151 ປະເພດລິຟເຄື່ອງກວດຈັບຂໍ້ບົກພ່ອງຂອງສາຍເຊືອກເຫຼັກ
The entire series can detect the diameter range of steel wire ropes: Φ1.5-300mm(requiressensors of different series specifications)
Relative speed between sensor and steel wire rope: 0.0-6.0 m/s, optimal speed: 0.3-1.5m/sThe optimal gap between the sensor guide sleeve and the steel wire rope is 2-6mm, andtheallowable gap is 0-15mm
Wire breakage defect (LF) detection capability
Qualitative: The accuracy rate of qualitative detection for single centralized brokenwireis99.99%
Quantitative: The number of concentrated broken threads in a single location allowsfor oneorone equivalent thread to be misjudged
Quantitative detection of the number of broken wire roots in a single centralizedlocationwithno error for more than 100 times, with an accuracy rate of ≥ 92%
Quantitative change rate of metal cross-sectional area (LMA)
Detection sensitivity repeatability allowable error: ± 0.055%
Detection accuracy indication allowable error: ± 0.2%
Location (L) detection capability:
Power supply: computer battery powered 5V
Sensor weight: Common specifications<10kg
Environmental temperature: -10 ℃~40 ℃
Atmospheric pressure: 86~106Kpa
Relativehumidity: ≤ 85%
