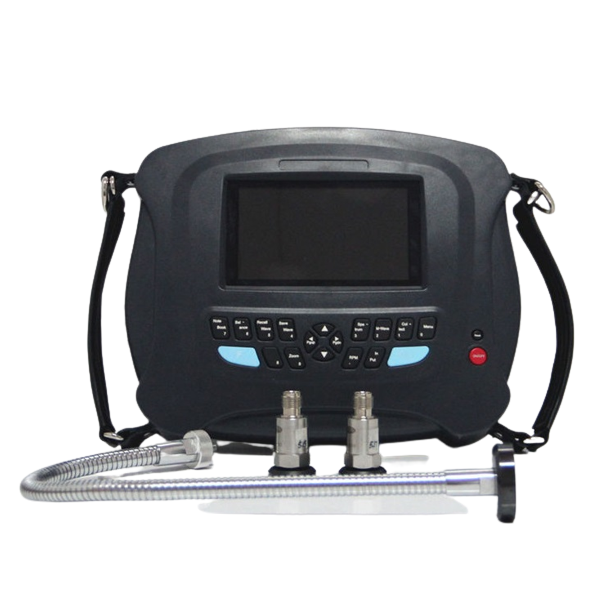

Rotation speed range for dynamic balancing: 70-60.000r/min
Auto-range and manual-range selectable
Measuring accuracy of vibration: 5 %
Sensors: Piezoelectric accelerometer, Magnetoelectricity velocity, Eddy displacement and etc.
Input signal: Accelerometer, and voltage
Amplitude spectrum analysis: 100 lines to 400 lines (zoom), Hanning windowed
Frequency span of spectrum analysis: 100, 200, 500, 1K, 2K, 5K, 10KHz (only for 1-channel sampling)
Data storage: 400 waveforms of 1024-points and 400 data sets
Displacement: 0.003 – 5 mm peak-peak (Amplitude ranges) ; 10 – 500 Hz (Frequency Response)
Velocity: 0.2 – 200mm/s true RMS (Amplitude ranges) ; 10 – 1000 Hz (Frequency Response)
Acceleration: 0.5 – 250m/s2 peak (Amplitude ranges) ; 20 – 5000 Hz (Frequency Response)
Envelope: 0.1 – 20unit true RMS (Amplitude ranges) ; 5-1000Hz from 15-40 KHz (Frequency Response)
Voltage: 0.1 – 10V peak-peak (Amplitude ranges) ; 10 – 10000 Hz (Frequency Response)
Notepad: 10 condition codes for visual inspection
Output: USB for communication with PC
Power: Ni-MH rechargeable battery for 8 hours continuous operation, low battery warning
Operating Environment: 0~55°C, 90% humidity non-condensing
Rotating speed measurement with photocell sensor
Dynamic Range: 60dB with 48dB adjustable gain range
Dimensions: 21×13×4 cm; Weight: 1.2 kg (Include batteries)
