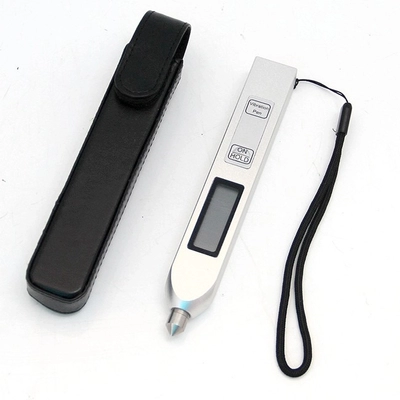

HUATEC HG-6410 ເຄື່ອງທົດສອບການສັ່ນສະເທືອນແບບເຄື່ອນທີ່ (0.1mm/s-199.9 mm/s)

Technical Specifications:

Parameter: Velocity

Testing range: Velocity: 0.1mm/s-199.9 mm/s(RMS)

Frequency range: Velocity: 10Hz ~ 1kHz

Accuracy: ±5% ± 2digits

Display: 3 1/2 digits LCD

Power supply: two button batteries(LR44 or SR44)

Battery capacity: Approx. 5 hours working continuously

Operating temperature: 0℃ ~ 40℃

Humidity: <85%

Dimension: 150mm×22mm×16mm

Standard Configuration

1. Main uni.: 1

2. Screwdriver: 1

3. Batteries SR44LR44 1.5V: 2

4. Box: 1

5. Document: 1(set)

Features:

· Compact size, small weight, easy handling

· Prompt testing of vibration on the workshop machines

· For quick checking of unbalance misalignment, bearings and gears

· Guard against mechanical malfunction

· Holding tested value for 40 seconds

· Automatic switch off after 40 seconds

· HG6410 is used for velocity only
