HUATEC HBA-100 Aluminum Alloys Portable Hardness Tester Kits (0 ~ 100HBa)
Main features
Portable indentation hardness tester.
Single hand operation; no operating experience required; can test any workpiece which is reachable in any site.
Wide valid testing range equivalent to Brinell hardness 25-150HBW. Used to test the hardness of all kinds of aluminum, from very soft aluminum to very hard aluminum alloys.
1,High sensitivity. Featured with 100 scales, much more sensitive than Webster hardness testers applied in aluminum alloys industry.
2,No supporting required. Can test from only one side of the workpiece. No need to move or support the workpiece.
Used to test super large and thick worpieces and assembly parts.
3,Easy conversion. The test results can be converted to HB, HR, HV and HW easily through conversion table.
4,Comply to standard ASTM B648-2000.
Technical parameters
1,Indenter: 26°panhead cone, head face diameter 0.176mm
2,Testing Range: 0~100HBa,equivalent to 25~150HBW
3,Resolution: 0.5HBa
4,Indication error: hardness range 42~52HBa, ±2HBa
hardness range 84~88HBa ±1HBa
5,Repeatability error: hardness range 42~52HBa, ±2HBa
hardness range 84~88HBa ±1HBa
6, Net weight: 0.5kg

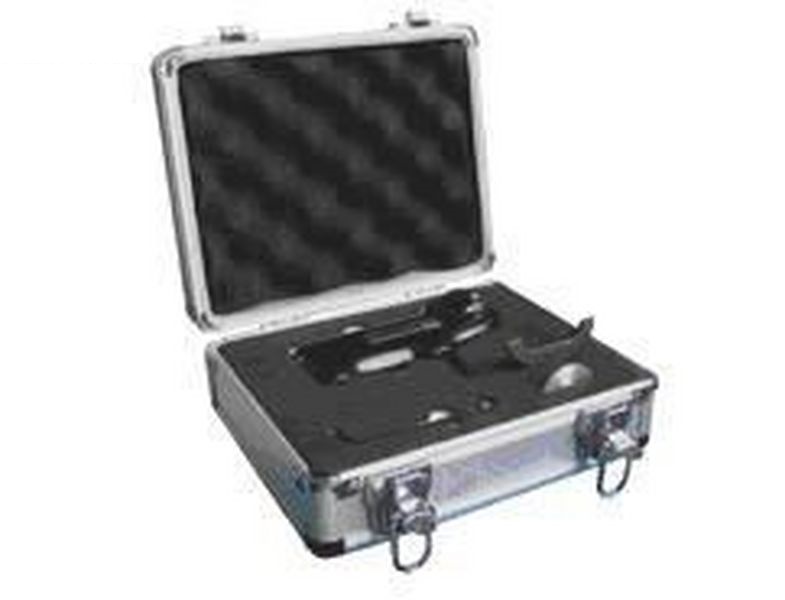

Standard accessories
Main unit 1 pc
Standard block 2pcs
Spanner 1pc
Manual 1pc
Cerficate 1pc
