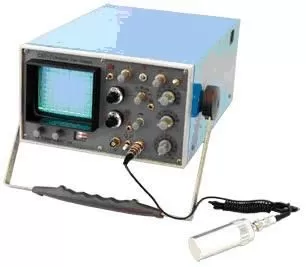

HUATEC FD100 ເຄື່ອງກວດຈັບຂໍ້ບົກພ່ອງ Ultrasonic

Specifications

Gain: 0-108dB(10dB×5,6dB×8,1dB×10)

Horizontal Linearity Error : ≤1%

Vertical Linearity Error : ≤3.0%

Dynamic range : ≥30dB

Sensitivity Leavings : ≥50dB(200mm-Φ2 flat bottom hole,2.5PΦ20)

Resolution : ≥30dB(2.5MHz straight beam probe)

Size(WxHxT): 235×135×335mm

Weight : 5Kg

Probe cable connector: BNC/ LEMO-1

Battery working time : 4～5 hours continuously

Power supply : 220/110VAC

Display screen type: high brightness salt screen

Screen size : 75mm×65mm

Working frequency : 0.4-~16 MHz

Standard Delivery

Main unit

Stand echo probe

2.5MHz-ф20 straight probe

4MHZ-8x9mm, 60degree angle probe

4A/9Vpower adapter

Probe connection cable (BNC to Lemo 00)

Instruction manual

Carrying case

Features

Real and reliable signal and echo

Excellent working performance

Big gain reach 108dB

Big display screen, high brightness

Direct sourcing power supply and battery all are available in one machine

Automatic alarm for error input and output echos
