Testing range:( 8～650)HBW | ||
Test Force:612.9N(62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf) | ||
Accuracy of Displayed Hardness Value | ||
Hardness Range(HBW) | Max tolerance％ | Repetition％ |
≤ 125 | ± 3 | ≤ 3.5 |
125＜HBW≤225 | ± 2.5 | ≤ 3.0 |
＞ 225 | ± 2.0 | ≤ 2.5 |
Max, Height of the speciment: 225mm | ||
Max Distance from the indenter center to the instrument panel: 135mm | ||
Magnification of the microscope: 20X | ||
Min Reading Grade of the Drum wheel of the microscope: 0.005mm | ||
Power supply and Voltage: AC220V/50-60Hz | ||
Main Accessories | ||
Tables:Large, Small and V-shaped each | ||
Hard Alloyed Steel Ball Indenters: ￠2.5mm, ￠5mm, and ￠10mm each. | ||
One Microscope: 20X | ||
Two Standard Hardness Blocks | ||

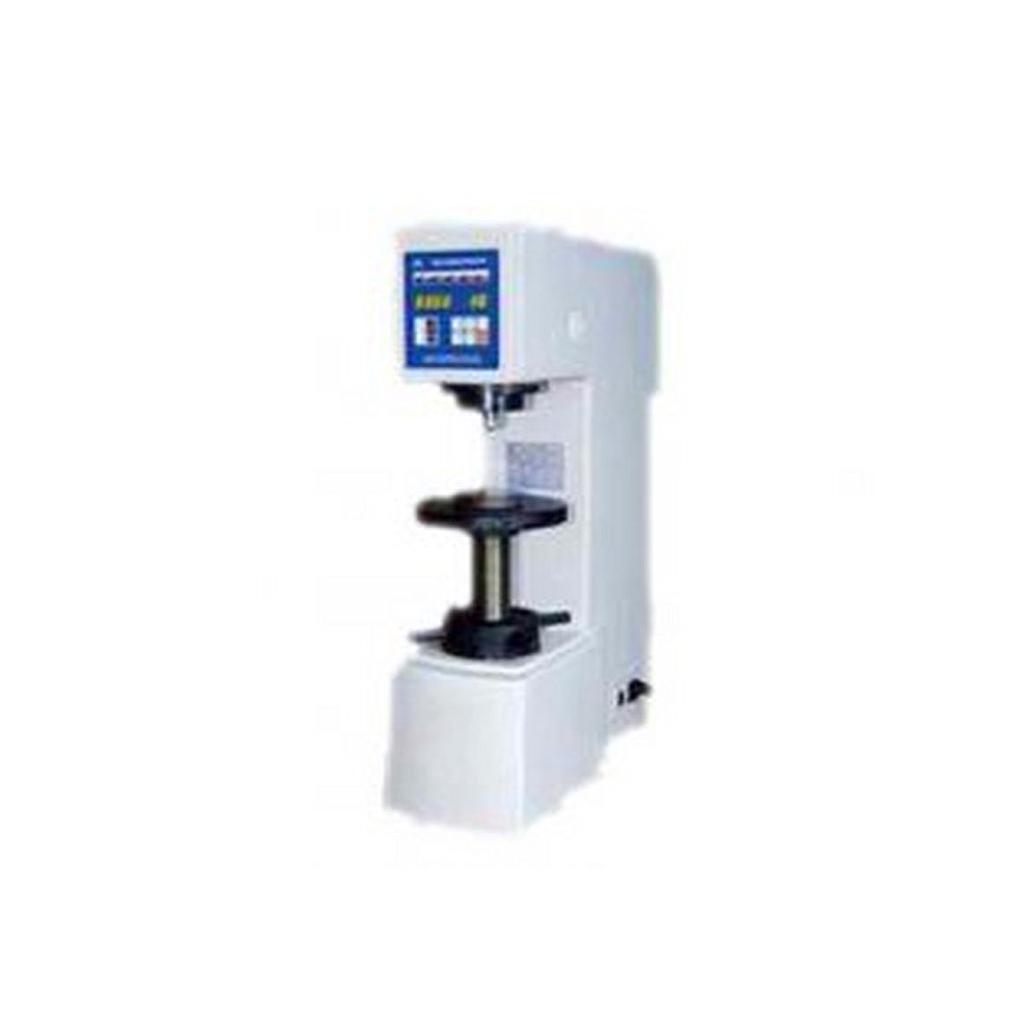

Large Image : Brinell Hardness Tester DHB-3000
| Place of Origin: | China |
|---|---|
| Brand Name: | HUATEC |
| Model Number: | DHB-3000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 days |
| Payment Terms: | TT /LC |
Detailed Product Description
