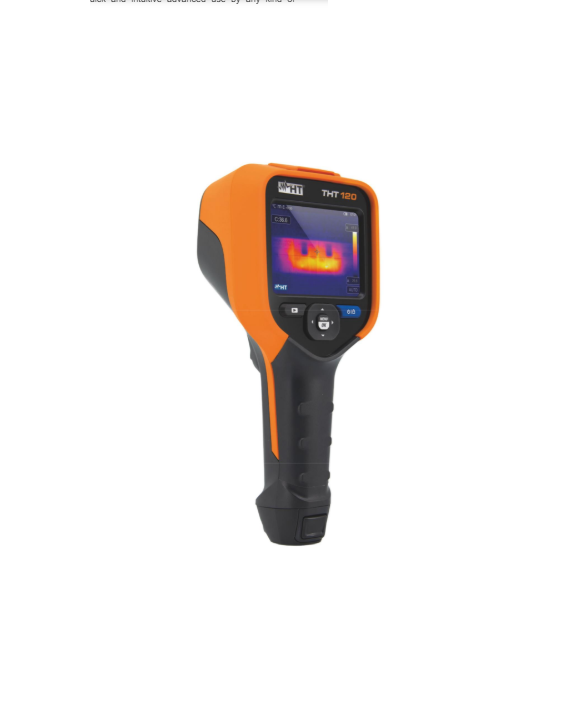

HT THT120 ກ້ອງຖ່າຍຮູບ IR ມືອາຊີບ (-20°C ÷ 650.0°C)
Thermal
Detector type: UFPA
Spectral range: 8 ÷14µm
Risolution / Pxl size: 120 x 120 pxl / 17µm
Thermal sensitivity/NETD: <0.05°C @ 30°C / 50mK
Field of View (FOV): 15.6° x 15.6°
Focal lens / F-number: 7.5mm / 1.0
Minimum focal distance: 0.5m
IFOV (@1m): 2.26mrad
Focusing: Manual on lens
Image frequency: 50Hz
Color palettes: 8 Standard + 4 Isotherms
Visible
Integrated camera: 2Mpxl, FOV 65°
Imaging / ir video display
Display type: 3.5” TFT color, capacitive touch-screen, high brightnes
Image mode: IR, Visible, Fusion PiP, Auto Fusion
IR Video: Recording and saving MP4 format
Electronic zoom: x1 ÷ x32 in continuous way
Temperature measurement
Range/ Resolution/ Accuracy:
-20°C ÷ 650.0°C/ 0.1°C/ ±2%rdg or ±2°C (higher value)
4.0°F ÷1202.0°F/ 0.1°F/ ±2%rdg or ±3.6°F (higher value)
General specifications
Measurement cursors: 4 (1 fixed central + 3 freely positionable on image)
Measurement modes: Automatic / Manual / Histogram
Emissivity correction: 0.01 ÷ 1.00 + internal table with common materials
Alarm on temperature: Associated to measurements spots
Temp. Compensation: only Screening mode
Operating temperature: -15°C ÷ 50°C
Operating humidity: 10%RH ÷ 90%RH
Storage temperature: -40°C ÷ 70°C
Storage humidity: 10%RH ÷ 90%RH
Encapsulation: IP54 according with IEC529
Shock: 25G, according with IEC60068-2-29
Vibrations / Drop test: 2G, according with IEC60068-2-6 / 2m
Dimensions (L x W x H): 240 x 100 x 110mm
Weight(battery included): 535g
