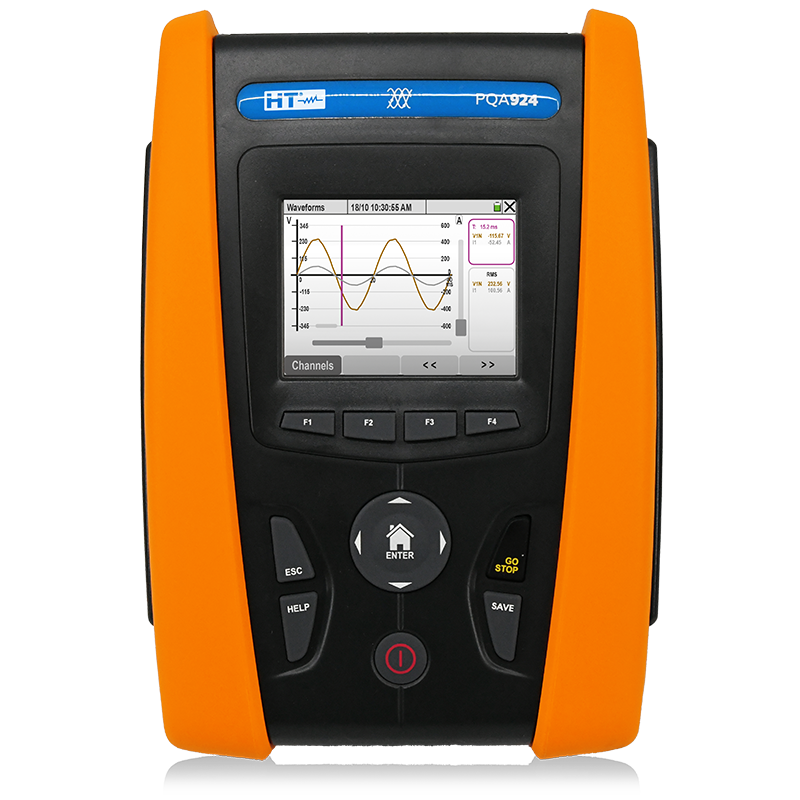

HT PQA924 ອຸປະກອນວິເຄາະຄຸນນະພາບພະລັງງານແລະພະລັງງານ (1000V, 6000A)
AC voltage in single-phase/three-phase systems: 1000V
AC current in single-phase/three-phase systems: 6000A / 10000A with HTFLEX355 (optional)
Cosphi, Power Factor
Voltage unbalance (NEG%, ZERO%)
Active, reactive, apparent power/energy
Voltage and current harmonics and inter-harmonics up to the 63rd and THD% absorbed/generated (4 quadrant measurements)
Power harmonics up to the 63rd absorbed/generated
Voltage Anomalies (dips and peaks) with a resolution of 20ms
Voltage fast transients (spikes) up to 8kV with 1µs resolution (1MHz: Max 2000 events
Electric motor starting current with 10ms resolution (@50Hz): 6000A
Voltage flickers (Pst, Plt): :Max 2000 events
Full analysis EN50160
Phase sequence
Neutral-Ground Voltage
Neutral current
Max number of simultaneously selectable parameters: 3177
Recording with selectable integration period: 0.2s-120m
Indicative length of SD-card memory (@ PI=1s @ 450 selected parameters): about 15 days
Memory for data saving: Memory card
Default and custom recordings
Saving instant sampled values
Summary table of main electric parameters
Voltage/current waveforms
Summary table of main electric parameters
Voltage/current waveforms
Tables or histograms of Harmonics and THD%: Live up to 63rd
Voltage/current vector diagram
Touchscreen colour display: 320x240pxl
Power supply with rechargeable battery: 6x1.2V NiMH tipo AA
External battery charger
Auto power off
Communication modes: USB-C, Ethernet, WiFi
Context help active on each screen
Size (LxWx H) (mm): 225x165x75
Weight in grams (batteries included): 1200
