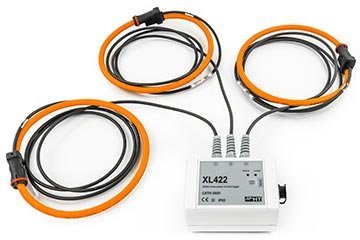

HT Instrument XL422 TRMS three phase current Data Logger (2~2500A,±(2.0%rdg + 2dgt))
VOLTAGE:
Range : 2 ÷ 2500A
Resolution: 1A
Accuracy: ±(2.0%rdg + 2dgt)
Sampling rate: 64 point in 20ms for each sampling period.
Sampling period: 1s, 6s, 30s, 1min, 5min
Memory capacity: 1Mbyte; Autonomy in days (depending on batteries autonomy): 5(1s) ; 34(6s) ; 170(30s) ; 364(1min); 1820(5min)
PC interface: RS-232
Operating Temperature / Humidity: -20°C to 60 °C ; 0 - 100%RH (RS-232 connector closed)
Storage Temperature / Humidity:-20°C to 60 °C ; 0 - 100%RH (RS-232 connector closed)
General information:
• Insulation: class 2 (double insulation).
• Altitude max: 2000m
• Protection degree: IP65 (RS-232 connector closed)
Power supply:
• 2x1.5V alkaline battery type LR6-AA-AM3-MN1500
• Battery autonomy: >6months
Dimension:
• 120 (L) x 80(La) x 43(H) mm
• Maximum diameter conductor: 174mm
Weight: about 500g (with internal batteries).
Reference Standards:
• LVD: EN 61010-1 CAT III 600V (to ground and between inputs)
• EN61326 (1997)+ A1 (1998) +A2 (2001)
Included Accessories:
BORSA2000 Bag for transporting
TOPVIEW2004 Windows software for PC + serial cable C2004
VELCRO
Batteries and user manual
