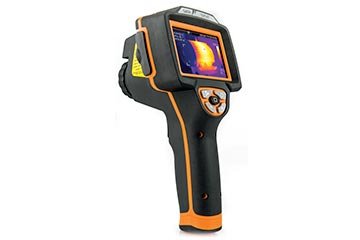

HT THT70n ກ້ອງຖ່າຍຮູບ IR ແບບພິເສດທີ່ມີຫນ້າຈໍສໍາຜັດ capacitive (-20°C ÷ 650°C)
Type of IR sensorUFPA
Spectrum range8 ÷14µm
Resolution384 x 288 pxl / 17µm
Thermal sensitivity<0.05°C @ 30°C / 50mK
Field of view (FOV)17° x 12.7° (lens 22mm)
IFOV (@1m)0.77mrad
Image focusManual on lens
Frequency50Hz
Colour Palettes8 Standard + 4 Isotherms
Focal length of the lens22mm
Camera type5Mpxl, FOV 59°
Display3.5 ”color TFT, capacitive touch-screen, high brightness
IR, Visible, Fusion PiP, Auto Fusion
Digital zoom1x ÷ 32x
Video outputHDMI
Standard temperature measuring range-20°C ÷ 650.0°C / -4.0°F ÷ 1202.0°F
Screening temperature measuring range32.0°C ÷ 42.0°C / 89.6°F ÷ 107.6°F
Measurement cursors4
Class 2 laser pointer
Integrated white light illuminator
Picture mode
Ways of measurementAutomatic / Manual / Histogram
Measurement functionAutomatic correction according to distance, relative humidity, ambient temperature, reflected temperature and offset
Measure object distancerange: 0.05m ÷ 30m, uncertainty: ± 5mm, laser pointer
Temperature alarmAssociated with measurement points
Operating temperature-15°C ÷ 50°C
Falling test2m
Size (LxWxH) (mm)260 x 101 x 120mm
Weight850g
ACCESSORIES
Calibration report
Optics 22mm f/1.0
Micro SD Card 8GB
Headset with microphone
User manual on CD-ROM and quick guide
HDMI video cable
Windows software on CD-ROM
BAT8X
AC / DC power supply + universal plugs
Battery charging base
Rigid carrying case
