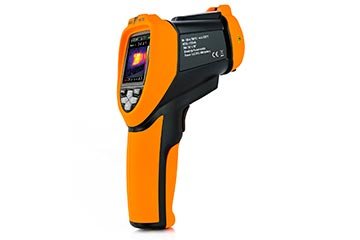

HT Instruments THT32 Thermal imager 32x31pxl with blending fusion (-20°C ÷ 300°C )
1. IMAGING PERFORMANCE
Detector type: UPC (Uncooled Pyroelectric Ceramic)
Spectral range: 6.5 ÷14μm
Risolution / Pxl size: 32x31pxl
Thermal sensitivity: <0.15°C (150mK)
Field of View (FOV): 38° x 38°
Focusing Fixed: focus
Image frequency: 9Hz
Color palettes: 6 selectable palettes
Integrated camera: 48608pxl
2. IMAGING / IR VIDEO DISPLAY
Display type: 2.2” LCD, TFT colour, 320x240pxl
Blending Fusion: IR image blending with visible (0% ÷ 100%, step 25%)
3. MEASUREMENT
Temperature range: -20°C ÷ 300°C (-4°F ÷ 572°F)
Measurement unit: °C, °F
Accuracy: (@ 25°C) ±2%rdg or ±2°C
Measurement cursors: 3 (MIN, MAX, FIXED)
Measurement modesL Automatic
Emissivity correctionL 0.01 ÷ 1.00
Measurement featuresL Automatic correction based on emissivity and reflexed temperature
4. IMAGE STORAGE AND PC INTERFACE
Memory Micro: SD card 4GB
File format: BMP
Memory size: 6000 images
PC interface USB: 2.0
5. POWER SYSTEM
Battery type: Rechargeable Li-ION, 3,7V 1400mAh
Charging system: In camera
Battery life: 2 hours (stand-by)
External power: External adapter 100/240VAC (50/60Hz)/5VDC
Dimensions (L x W x H) 205 x 155 x 62mm
Weight(battery included) 410g
Accessories provided:
Tripod
THT32 rigid case
USB cable
Power supply cattery charger
Micro SD Card 4GB
Batteries and user manual
