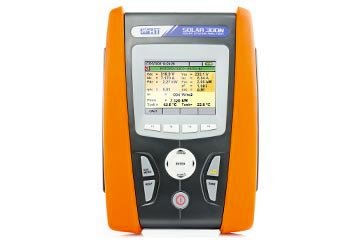

HT Instrument SOLAR300N (HV00300N-0201) Power Quality Analyzer for checking the efficiency of photovoltaic systems (without CTs)
DC Voltage – PV systems: 0.0 ~1000.0V; ± (0.5%rdg + 2dgt)
AC TRMS Voltage – P-N / P-PE / P-P – PV systems Single/Three phase plants: 0.0~1000.0 (P-P); ± (0.5%rdg + 2dgt)
DC/AC TRMS Voltage – P-N / P-PE / P-P – NPV systems Single/Three phase plants: 0.0~ 1000.0 (P-P); ± (0.5%rdg + 2dgt)
AC Voltage Anomalies – Phase-Neutral Single Phase plants: 0.0 ~ 600.0V; ± (1.0% rdg+2dgt)
AC Voltage Anomalies – Phase-Phase Three Phase plants: 0.0 ~ 1000.0V; ±(1.0%rdg+2dgt)
AC Voltage spikes – Phase-Earth voltage – Single/Three phase plants :
+ -1000 ~ -100V/ 100 ~ 1000V; ±(2.0% rdg+60V)
+ -6000 ~ -100V/ 100 ~ 6000; ±(10% rdg+100V)
DC and AC TRMS Current with external transducers (STD): 0.0 ~ 1000.0mV; ± (0.5% rdg + 0.06%FS)
AC Current with FLEX transducer:
+ 0.0~ 300.0A
+ 0.0~ 3000.0A
AC Inrush current: Dep.on clamp; ±(1.0% rdg+0.4%FS)
Voltage and Current Harmonics: DC ~49th; ± (5% rdg + 5dgt)
DC Power: 10A~1000A; 0.000w~ 999.9kW; ± (0.7% rdg+3dgt)
AC Power Single and Three phase: 0W~9.999MW; ± (0.7% rdg+3dgt)
AC Energy Single and Three phase: 0W~9.999MW; ± (0.7% rdg+3dgt)
Frequency: 42.5 ~ 69.0Hz; ±(0.2%rdg+1dgt)
Power factor: 0.20~ 1.00
Flicker – Single/Three phase plants: Pst1’, Pst, Plt
Irradiance (by SOLAR-01 unit and PYRA input)
: 0.00~120.0mV; ± (1.0%rdg + 5dgt)
Irradiance (by SOLAR-02 unit and PYRA/CELL input): 0 ~ 1400 W/m2; ± (1.0%rdg + INT(1000 * 0.1/K)
Probe sensitivity: 0.00 ~ 65.00mV; ±(1.0%rdg+0.1mV)
Temperature (by SOLAR-01 unit and TEMP input): 0 ~ 100°C; ±(1.0%rdg +2dgt)
Temperature (by SOLAR-02 unit and TEMP input)
: -20 ~ 100°C; ±(1.0%rdg +1°C)
STANDARD ACCESSORIES
User manual and quick guide
ISO9000 calibration certificate
HT304N REFERENCE CELL FOR IRRADIATION MEASUREMENT
SOLAR02 REMOTE UNIT FOR MEASURING IRRADIATION, TEMPERATURE AND TILT ANGLE
PT300N PROBE FOR TEMPERATURE MEASUREMENT OF PHOTOVOLTAIC PANELS
VA500 Hard Case
KIT800 SET OF CABLES AND ALLIGATOR CLIPS BLACK-REDGREEN- BLUE-BROWN
A0055 POWER SUPPLY CATTERY CHARGER CAT IV
YABAT0003HT1 Rechargeable Bat
TOPVIEW2007 MULTI-LANGUAGE SOFTWARE
C2007
PT400
