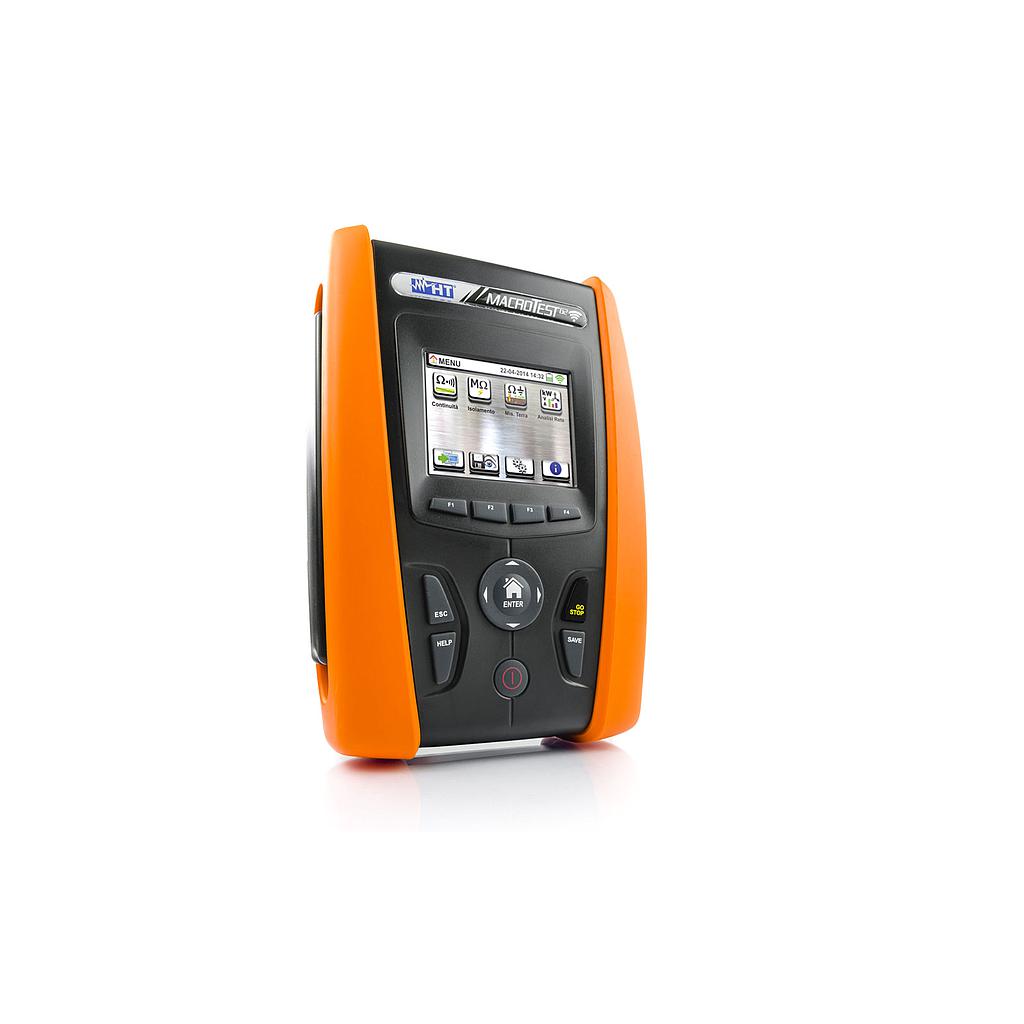

HT MACROTESTG2 ທິບ ບີ່ງກິມ tra điện đa năng (Trùng, đã ẩn)
- Continuity with 200mA: 0,01Ω÷99.9Ω; ±(5.0% reading + 3 digits)
- Insulation resistance: Test voltage: 50, 100, 250, 500, 1000VDC;±(2.0% reading + 2 digits)
- Line/Loop Impedance (L-L, L-N, L-PE): 0.01Ω ÷ 199.9Ω; ±(5.0% reading + 3 digits)
- Earth resistance and ground resistivity: R 0.01Ω ÷ 49.99kΩ; P 0.60Ωm÷3.14MΩm; ±(5.0%reading + 3digits)
- Measurement of environmental parameters(with optional probes):
- Air temperature (°C/°F): -20.0 ÷ 60.0 °C / -4.0 ÷ 140.0 °F
+ Relative humidity: 0% ÷ 100%RH
+ Illuminance (Lux): 0.001lux ÷ 20klux
+ Accuracy: ±(2.0% reading + 2 digits)
- Measurement of main parameters and harmonics (PQA)
+ AC TRMS Voltage: 15.0÷459.9V; ± (1.0%rdg + 1dgt)
+ Frequency: 42.5÷69.0Hz; ±(2.0%rdg + 2dgt)
+ AC TRMS Current: 5% FS ÷ 2999
+ Active Power: 0.000~ 999.9kW
+ Reactive Power: 0.000~ 999.9kW
+ Power Factor: 0.70c÷1.00÷0.70i
Standard accessories
• C2033X 3-banana to Shuko plug cable
• KITGSC5 Kit including 4 cables, 4 alligator clips and 2 test leads
• KITTERRNE Soft carrying bag containing 4 cables and 4 earth rods
• PT400 Stylus
• BORSA2051 Soft carrying bag
• TOPVIEW2006 PC software and optical-to-USB connection cable C2006
• YABAT0003000 Rechargeable NiMH battery 1.2V, AA, 6 pcs
• Quick user’s guide
• User’s manual on CD-ROM
• Calibration certificate ISO9000
