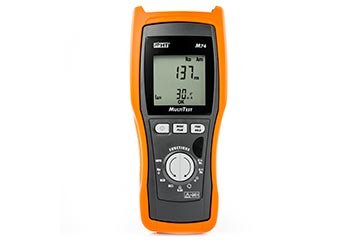

HT M74 ດິຈິຕອລ Multimeter

ຜູ້ຜະລິດHT(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelM74

ຕົ້ນກຳເນີດItaly

ການຮັບປະກັນ12 ເດືອນ

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

DC/AC TRMS Voltage: 1.0 ÷ 605.0V; ±(0.5%rdg + 2 dgt); ±(1.0%rdg + 2 dgt); ±(2.0%rdg + 2 dgt); 1MΩ

AC/DC Voltage: Max, Min/ Avg/ Peak

MAX, MIN, AVG : 1.0mV÷ 605.0V, ±(5.0%rdg + 10 dgt), 500ms

PEAK: 10.0mV÷ 605.0V, ±(5.0%rdg + 10 dgt), 1ms

DC/AC current TRMS: 1.0÷ 1.200V , ±(0.5%rdg + 2 dgt), ±(1.0%rdg + 2 dgt), ±(2.0%rdg + 2 dgt), 605rms max

AC/DC Voltage: Max, Min/ Avg/ Peak

MAX, MIN, AVG : 1.0mV÷ 1.200V, ±(5.0%rdg + 10 dgt), 500ms

PEAK: 10.0mV÷ 3.000V, ±(5.0%rdg + 10 dgt), 1ms

Resistance and Continuity Test:

0.00Ω ÷ 39.99kΩ, ±(1.0%rdg + 5 dgt); R ≤ 40Ω, 605Vrms max for 1 minute

Frequency (with test leads): 30.0÷ 400Hz , ±(0.5%rdg + 2 dgt), 1.0mV ÷ 605V, 605Vrms max

Frequency (with external clamp) : 30.0÷ 400Hz , ±(0.5%rdg + 2 dgt), 1.0mV ÷ 1.000V, 605Vrms max

Continuitty Test on protective and equalizing conductors:

0.01÷99.9; ±(5.0%rdg + 3 dgt); 605Vrms max

Insulation Resistance:

0.00÷199.9; ±(5.0%rdg + 2 dgt); 605Vrms max

200÷999; ±(10.0%rdg + 2 dgt); 605Vrms max

Tripping time test for RCD type AC and A: 2 ÷ 300; 1; ±(2.0%rdg + 2 dgt) ;605Vrms max

Tripping currente test for RCD type AC and A : AC, A (General); 30mA; 6.0 ÷ 33.0; 0.5mA

Global Earth Resistance

15mA; 1 ÷ 1999; 1; ±(5.0%rdg + 2dgt); 605Vrms max

100mA; 0.1 ÷ 199.9; 0.1; ±(5.0%rdg + 3dgt)

Phase sequence / conformity

1 Wire: 90 ÷ 315 (Phase – Earth); 45 ÷ 65; up to 315 (Phase – Earth);

up to 550V (Phase – Phase)

2 Wire: 110 ÷ 315 (Phase – Neutral); 45 ÷ 65; up to 315 (Phase – Earth);

up to 550V (Phase – Phase)

Accessories:

User manual on CD-ROM and quick guide

ISO9000 calibration certificate

Bag BORSA2000

Cable with banana green-black shuko plug C2075

Set of Leads and Alligator Clip Black-Green KIT0075

Optional Accessories:

HT96U

Clamp HT97U

Clamp HP30C2

Clamp HP30C3

Clamp HT4005K

Clamp HT4005N for AC

Clamp HT98U for DC

Clamp HP30D1 for DC

Bag BORSA2051

Bag BORSA75

Connection 606-IECN

NOCANBA

Connection 1066-IECN

Rechargeable Battery YABAT0003000

External Battery Charger YABAT0004000

Connection 1066-IECR

Clamp HT4003
