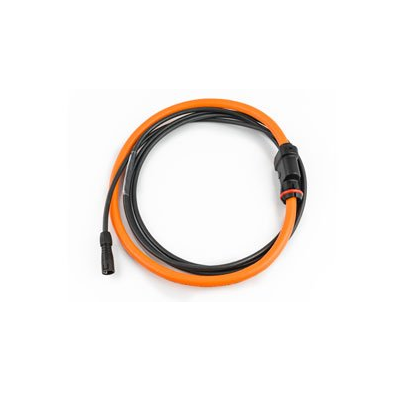

HT HTFLEX33LE ການຍຶດທີ່ຍືດຫຍຸ່ນສໍາລັບ AC Current (3000A ACRMS)
Measurement range: 3000A ACRMS
Output signal (@ 1000ARMS, 50Hz): 85mV AC
Input impedance: 170Ω ~ 10Ω
Output impedance: 100Ω
Accuracy (at 25°C, 50Hz): ± 0.5%rdg (0.1% ÷ 100% of range)
Linearity (from 0.1% to 100% of range): ± 0.5%rdg
Frequency range: 10Hz ~ 20kHz
Phase error: < ± 1° (45 ~ 65Hz)
Position sensitivity: ± 2% rdg
Noise: 1mV ACRMS
Measurement category CAT III 1000V, CAT IV 600V
Insulation: double insulation
Pollution degree: 2 according to IEC/EN610101-1
Flexible clamp length (double insulation): 600mm
Maximum conductor diameter: 190mm
Instrument connection cable length:: 2m (double insulation)
Output connector: BINDER 9992130005 620 series
Operating temperature: -20°C ~ 80°C
Storage temperature: -40°C ~ 90°C
Temperature coefficient: ± 0.005 % rdg /°C
Operating humidity 15% ~ 85%HR without condense
Encapsulation: IP65
Safety:
IEC/EN61010-1:2001,
IEC/EN61010-031:2002
IEC/EN61010-2-032 :2002
