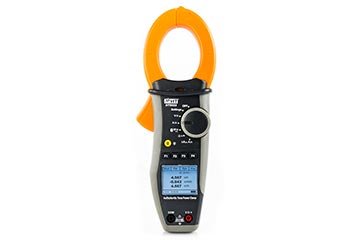

Manufacturer: HT Instruments
Item: HP009022
Model: HT9022
Origin: China
Warranty: 12 months
DC voltage: 0.5 ÷ 999.9V; ±(1.0%rdg + 4dgt); 2.6MΩ; 1000VDC/ACrms
AC (AC+DC) TRMS voltage: ±(1.0%rdg + 3dgt); 1MΩ; 1000VDC/ACrms
(AC+DC) TRMS Voltage: 0.5 ÷ 999.9V; 43 ÷ 63Hz, ±(1.0%rdg + 3dgt)/ 10 ÷ 43Hz, 63 ÷ 400Hz , ±(3.5%rdg + 3dgt); 1000VDC/ACrms
AC/DC Voltage – MAX/MIN/CREST: 0.5 ÷ 999.9V; ±(3.5%rdg + 5dgt); 1s; 1000VDC/ACrms
DC CURRENT: 0.5 ÷ 999.9A; ± (2.0%rdg + 5dgt); 1000ADC/ACrms
AC (AC+DC) TRMS Current: 0.5 ÷ 999.9A; 43 ÷ 63Hz ±(2.0%rdg + 4dgt)/ 10 ÷ 43Hz, 63 ÷ 400Hz ; ±(3.5%rdg + 5dgt); 2000ADC/ACrms
AC/DC Current – MAX/MIN/CREST: 0.5 ÷ 999.9A; ±(3.5%rdg + 5dgt); 1s; 1000VDC/ACrms
Resistance And Continuity Test: 0.0Ω ÷ 59.9kΩ; ±(1.0%rdg + 5dgt); 1Ω ÷ 150Ω; 1000VDC/ACrms x 60s
Frequency With Test Leads And With Jaws: 42.5 ÷ 69.0Hz; ±(1.0%rdg + 5dgt); 1000VDC/ACrms 1000ADC/ACrms
Phase Sequence And Phase Conformity: 10.0 ÷ 99.9Hz/ 100 ÷ 400Hz; ±(1.0%rdg + 5dgt) 1000VDC/ACrms
DC Power: 0.00 ÷ 99.99/ 100.0 ÷ 999.9; ±(3.0%rdg + 3dgt)
Active, Reactive, Apparent Power : 0.00 ÷ 99.99/ 100.0 ÷ 999.9; ±(2.0%rdg + 3dgt)±(3.0%rdg + 3dgt)
Active, Reactive Energy : 0.00 ÷ 99.99/ 100.0 ÷ 999.9; ±(2.0%rdg + 3dgt)±(3.0%rdg + 3dgt)
Power Factor:0.20 ÷ 1.00; ±3°
Voltage/ Current Harmonics: 1 ÷ 25 (10 ÷ 75)/ 1 ÷ 8 (76 ÷ 400); ±(5.0%rdg + 5dgt)
Phase sequence indication and phase conformity with 1-wire:100 ÷ 1000V; 40 ÷ 70Hz; 1.3MΩ
Memory capacity: 2Mbytes
Number of saved parameters: 60 parameters
Size: 252(L) x 88(La) x 44(H)mm
Weight (including battery): 420g
Max conductor size: 45mm
Battery type: 2 batteries 1.5V type AAA IEC LR03
Auto Power Off: approx. 5 minutes of idleness
Display: graphic dot matrix, 128x128pxl with backlight
Accessories:
ISO9000 calibration certificate
User manual on CD-ROM and quick guide
Batteries
Bluetooth/USB adapter for PC connection
Bag YABRS0000NN0
Pair of Leads YAAMK0000HT0
Pair of Test Leads YAAMK0001HT0
Adapter T10
Multi- Language Software TOPVIEWS
