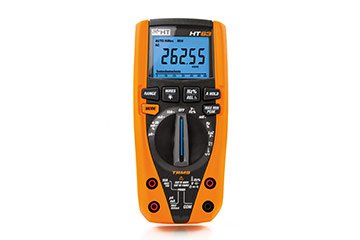

HT HT63 Digital Multimeter
DC VOLTAGE
600.0mV/ 6.000V / 60.00V / 600.0V ; ±(0.9%rdg+5dgt) ;10MΩ; 1000VDC/ACrms
1000V; ±(1.2%rdg+5dgt); 1000VDC/ACrms
AC TRMS VOLTAGE: 600.0mV/ 6.000V/ 60.00V/ 600.0V/ 1000V; ±(1.0%rdg+5dgt); ±(3.0%rdg+5dgt); 1000VDC/ACrms
DC CURRENT:
600.0µA/ 60.00mA/ 600.0mA/ 10.00A; ±(1.5%rdg+5dgt); Fast Fuse 0.8A/1kVAC/DC (inputs mA, µA) 6000µA ( Fast Fuse 10A/1kVAC/DC (input 10A)
AC TRMS CURRENT: 600.0µA/ 6000µA/ 60.00mA/ 600.0mA/ 10.00A; ±(2.5%rdg+5dgt); ±(3.5%rdg+5dgt); Fast Fuse 0.8A/1kVAC/DC (inputs mA, µA) ( Fast Fuse 10A/1kVAC/DC (input 10A)
DIODE TEST:<1.5mA; 2.8V; 1000VDC/ACrms
4-20mA% READINGS:
-25% ÷ 125%; ±50dgt; 0mA=-25%, 4mA=0%, 20mA=100%, 24mA=125%
RESISTANCE AND CONTINUITY TEST:
600.0Ω; ±(2.0%rdg+9dgt); 2.8V; <35Ω; 1000VDC/ACrms
6.000kΩ/ 60.00kΩ/ 600.0kΩ; ±(1.2%rdg+5dgt); 2.8V; <35Ω; 1000VDC/ACrms
6.000MΩ/ 60.00MΩ; ±(2.0%rdg+10dgt); 2.8V; <35Ω; 1000VDC/ACrms
FREQUENCY (Electronic circuits):
60.000Hz/ 600.00Hz/ 6.0000kHz/ 60.000kHz/ 600.00kHz/ 6.0000MHz/ 10.000MHz; ±(1.0%rdg+2dgt); >2.0Vrms min (20% < duty < 80%, <100kHz)
5Vrms min (20% < duty < 80%, >100kHz); 1000VDC/ACrms
FREQUENCY (Electrical circuits): 40.00 ÷ 10.00kHz; ±(0.5%rdg); 15Vrms; 1000VDC/ACrms
DUTY CYCLE: 0.1 ÷ 99.9%; ±(1.2%rdg+2dgt); 1000VDC/ACrms
CAPACITANCE;
60.00nF/ 600.0nF; ±(3.5%rdg+10dgt); 1000VDC/ACrms
6.000µF/ 60.00µF; ±(2.5%rdg+10dgt); 1000VDC/ACrms
600.0µF/ 6.000mF; ±(3.5%rdg+10dgt); 1000VDC/ACrms
TEMPERATURE WITH TYPE K PROBE:
-40.0°C ÷ 600.0°C/ 600°C ÷ 760°C; ±(2.05rdg+3°C); 1000VDC/ACrms
-58.0°F ÷ 600.0°F/ 600°F ÷ 1400°F; ±(2.05rdg+5.5°F); 1000VDC/ACrms
Display: LCD, 3 ½ dgt (6000counts) and 4½dgt (60000 counts) decimal point and bargraph; Automatic polarity indication; Backlight; “OL” over range indication; Response time: 3/s
Features:; Data HOLD, Auto HOLD; MAX/MIN; PEAK (Voltage and Current); RANGE; REL; DC 4-20mA% current readings; Auto Power OFF after 15 minutes of idleness
Altitude max of use: 2000m
Pollution degree: 2
Insulation: double insulation
Power supply: 4 x 1.5V alkaline batteries type AAA LR03
Dimensions (L x W x H): 175 x 85 x 55mm
Weight (included batteries): 390g
Accessories:
Battery charger for HT64
K-TYPE WIRE PROBE TK101
Adapter T10
ISO9000 calibration certificate
Bag B80
Pair of Leads KIT4000A
Batteries and user manual
