TX5000 Transmitter:
Transmitted power: 0.1W / 0.5W selectable
Frequency of integrated antenna: 32.768kHz
Power supply: 6x1.5V batteries type IEC LR20
Operating time: 40 hours (for intermittent use at 20°C)
Insulation: double insulation
Safety: IEC/EN61010-1
Category of measurement: CAT II / CAT III 440V and CAT IV 300V
Mechanical protection: IP56 (dust and water protection)
Working temperature: -20 ÷ 55°C (operation) ; -30 ÷ 70°C (storage)
Size (LxWxH): 260 x 255 x140mm
Weight (with batteries): 1.7kg
RX5000 Receiver:
Operating modes: Radio, Power network, Transmitter
Frequency range: 15Hz ÷ 23kHz (Radio) ; 50/60Hz (Power network) ; 32.768kHz (Transmitter)
Sensitivity: > 20µA (Radio) ; > 7µA (Power network) ; > 5µA (Transmitter)
Dynamic range: 120dB (Radio) ; 135dB (Power network) ; 120dB (Transmitter)
Depth determination: 0.3m ÷ 5m (finding cable) ; 0.3m ÷ 7m (finding probe)
Resolution depth measurement: 0.1m
Power supply: 10x1.5V batteries type IEC AA LR06
Operating time: 40 hours (for intermittent use at 20°C)
Insulation: double insulation
Safety: IEC/EN61010-1
Mechanical protection: IP67 (dust and water protection)
Working temperature: -20 ÷ 55°C (operation) ; -30 ÷ 70°C (storage)
Size (LxWxH): 600 x 252 x99mm
Weight (with batteries): 2.5kg
Accessories:
Batteries for transmitter and receiver
Metal probe

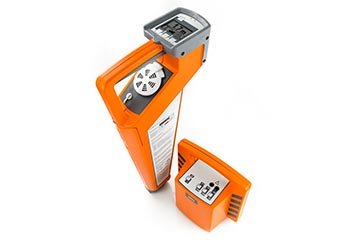

Transmitter TX5000 and receiver RX5000
Carrying bag HT-5000
Set of measuring cables with alligator clips
Batteries and user manual
