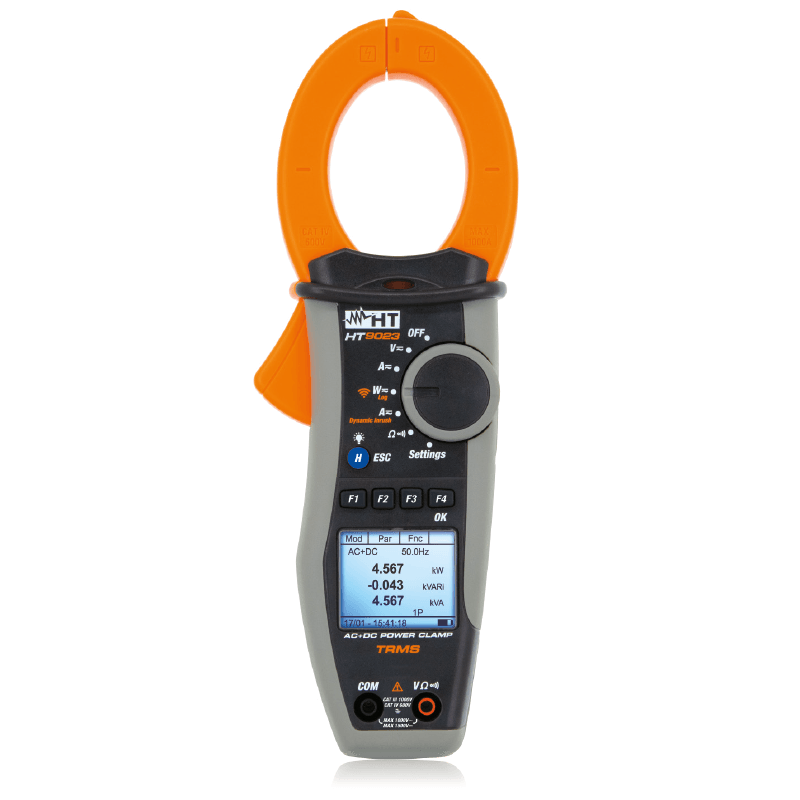

HT HT9023 TRMS AC/DC Clamp-on ເຄື່ອງວິເຄາະຄຸນນະພາບພະລັງງານ (AC/DC 1000A)
TRMS
Current measuring range: 1000A
AC/DC current: AC + DC
AC/DC voltage: 1000VAC/1500VDC
Frequency
Resistance and continuity test with buzzer
Phase sequence and phase concordance
AC/DC voltage, current measurement/recording
Measurement/recording of Cosphi, Power Factor
Measurement/recording of Active, Reactive, Apparent AC/DC Energy
Measurement/recording of V-I harmonics up to the 25th with THD%
Inrush current measurement (INRUSH): Dynamic INRUSH
Maximum diameter for clamp: 45mm
Measuring counts: 9999
Backlight
Autorange
Auto power off
Detection of AC voltage without contact
Data HOLD function
MIN/MAX function
PEAK function
Relative measurement
Datalogger and Graph
Memory for data saving
PC / Smartphone or Tablet interface: WiFi
AC/DC voltage in single-phase/three-phase systems: Single phase
AC/DC current in single-phase/three-phase systems: Single phase
Electric motor starting current (INRUSH)
Neutral-Ground Voltage
Neutral current
Max number of simultaneously selectable parameters: 60
Recording with selectable integration period:1s-15min
Indicative memory duration (in days @ PI= 30sec @ max number of parameters): 63 hours
Indication of recording duration
Internal memory capacity: 2MB
Saving instant sampled values
Summary table of main electric parameters
Voltage/current waveforms
Summary table of main electric parameters
Voltage/current waveforms
Tables or histograms of Harmonics and THD%
Voltage/current vector diagram
Power supply: 2x 1.5V AAA
Measurement category: CAT IV 600V CAT III 1000V
Weight in grams (batteries included): 420
Size (LxWx H) (mm): 252x88x44
