Max. Load capacity(kN): 300
Structure: Four column
Accuracy of testing load(%): ±0.5
Accuracy of deformation(%): ±0.5
Test Range: 1%-100%
Deformation measurement range: 1%-100%
Piston rising speed（mm/min）: 0-250
Piston descending speed（mm/min）: 0-250
Test Force Loading Rate Range: 0.02%-2%FS/s
Host structure: 2
Max. Tensile space(mm): 400
Max. Compression space(mm): 300
Actuator stroke(mm): 370
Datasheet
1. Application

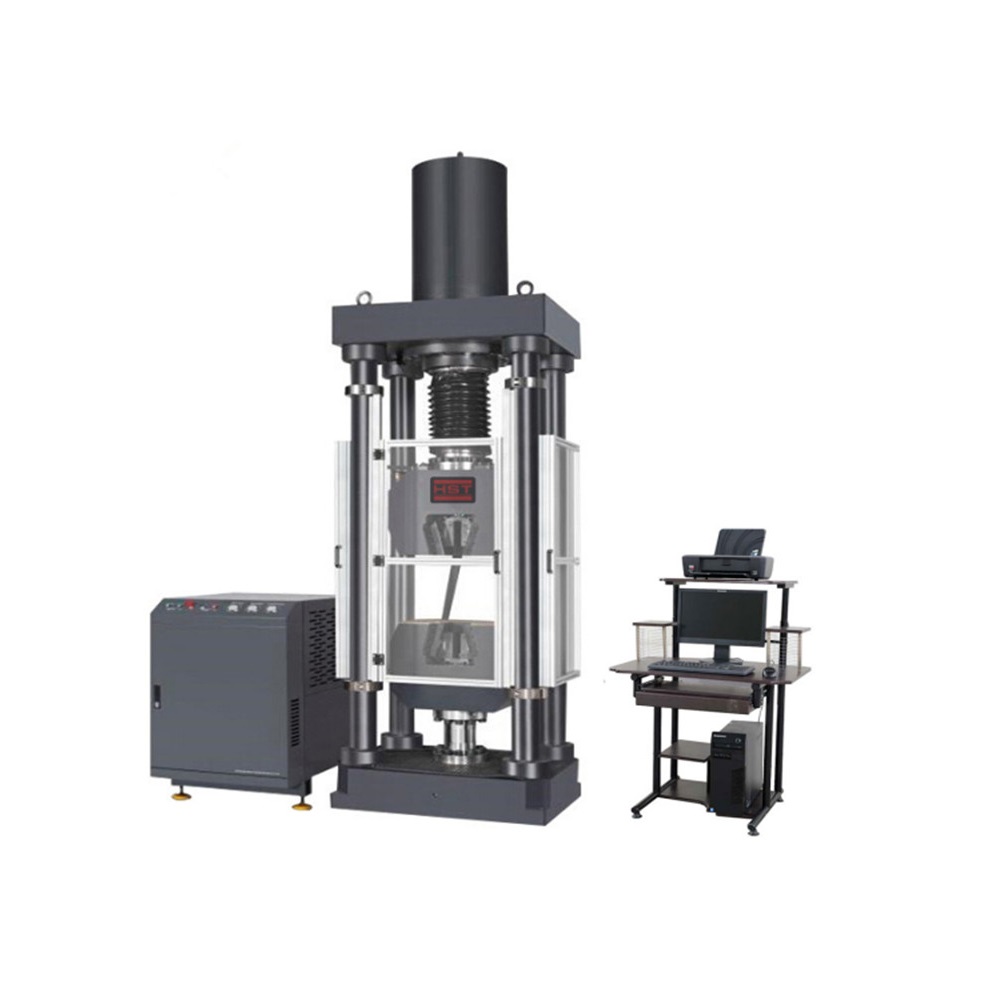

WAW-F Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.
2. Standards
2.1 Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2.2 Strain measurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
2.3 Also conform to some other standards: ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
