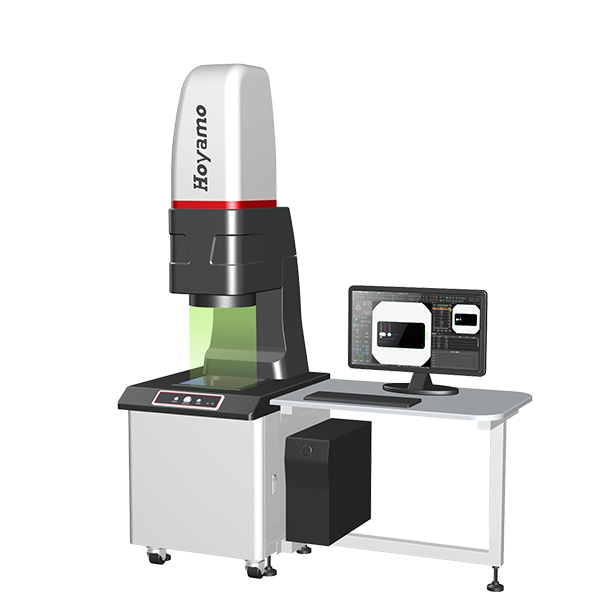

Hoyamo VX4230 ລະບົບການວັດແທກວິໄສທັດທັນທີ (12M CMOS)
Image Sensor: 12M CMOS
Outside Monitor: 24” LCD (XGA: 1920X1080)
Acceptance Lens: Double Telecentric Lens
Light:
Transmission Illumination System: Parallel Transmission Illumination (white light)
Field of view: 200x150mm
Depth of view: 50mm
Working distance: 400mm
Repeatability: ±2 µm
Accuracy: ±5 µm
Z axis travel range: 100mm

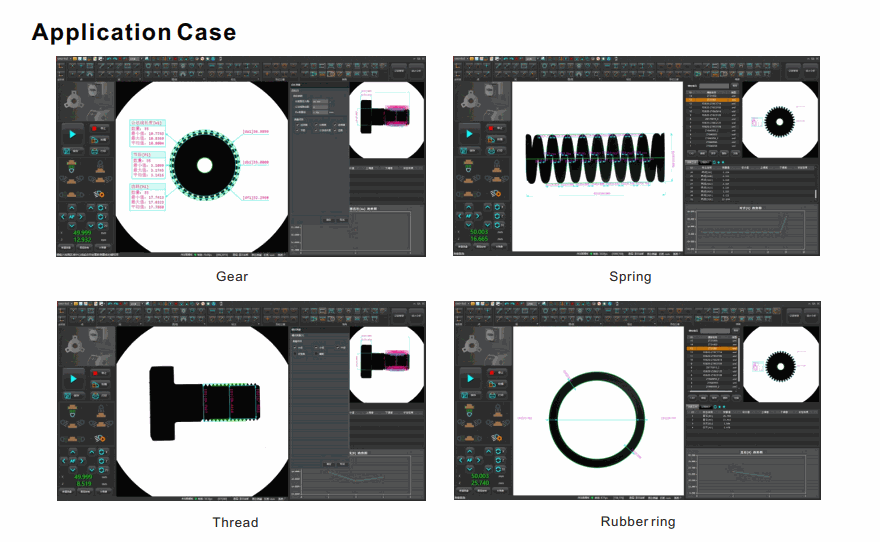

Software: vision X
Resolution: 0.1 µm
Loading capacity: 15kg
Size (LxWxH): 830x605x2030mm
Weight: 370kg
Input: AC 100-240V, 50/60Hz, 4A
Working enviroment: temp. 10 °C-35 °C, humidity: 20-80%, vibration <0.002g, less than 15Hz
Configuration:
VX5000 host machine 1pc
Power adapter 1pc
Cables 1pc
Computer and 24” monitor 1pc
Vision X software 1pc
User manual 1pc
Quality certificate 1pc
Instant Vision Measurement System
