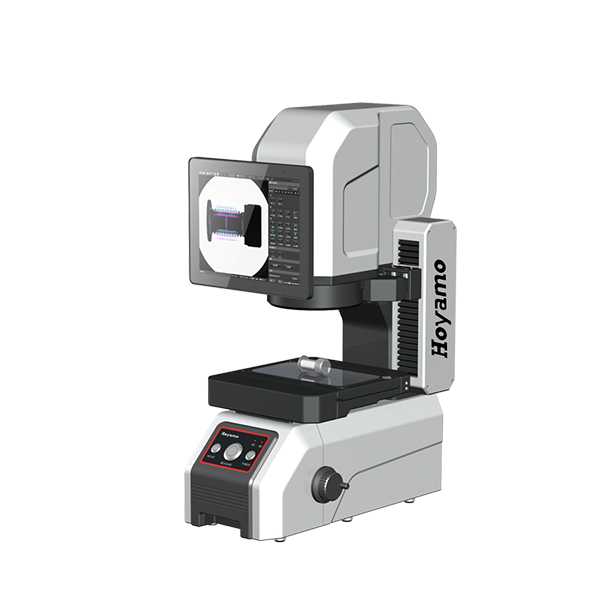

Hoyamo VX3100D ລະບົບການວັດແທກວິໄສທັດທັນທີ

Image Sensor: 5M CMOS

Monitor:

Built-in: 10.4" LCD (XGA 1024X768)

Outside: 24" LCD (XGA 1920X1080)

Acceptance Lens: Double Telecentric Lens

Light:

Casting Illumination System: Four-segment illumination(White Light)

Transmission Illumination System: Telecentric transmission illumination(Green Light)

Field:

Large Field: ø100xL200mm

High Precision: 20mmxL120mm

Repeatability of Image Meas.:

Large Field:

Without Stitching: ±1 µm

With Stitching: ±2 µm

High precision:

Without Stitching: ±0.5 µm

With Stitching: ±1.5 µm

Accuracy of Image Meas.:

Large Field:

Without Stitching: ±5 µm

With Stitching: ±(7+0.02L) µm

High precision:

Without Stitching: ±2 µm

With Stitching: ±(4+0.02L) µm

Physical probe: no

Resolution: 0.1 µm

XY object table:

X travel range: 110mm

Y travel range: -

loading capacity: 2kg

Z axis travel range: 35mm (Motorized)

Size: 500x280x670mm (LxWxH)

Weight: 31kg

Input: AC 100-240V, 50/60Hz, 2A

Working enviroment: temp. 10 °C-35 °C, humidity: 20-80%, vibration <0.002g, less than 15Hz
