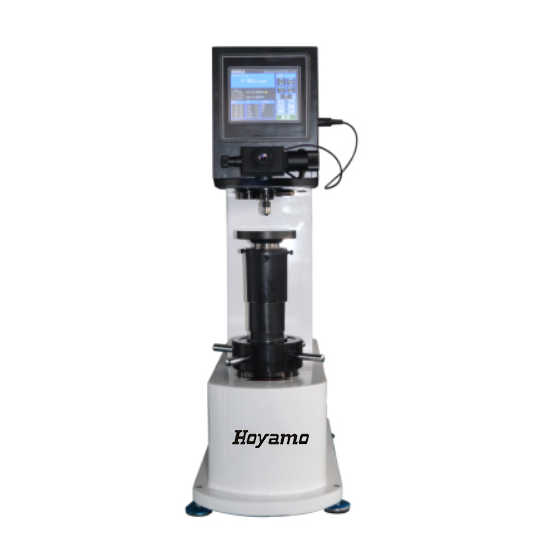

Hoyamo Vexus SHB3000N ເຄື່ອງທົດສອບຄວາມແຂງຂອງຈໍສຳຜັດ Digital Brinell (8~650 HBW)
Loading Force:
N: 612.9, 980.7, 1226, 1839, 2452, 4903, 7355, 9807, 14710, 29420
kgf: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000
Dwell Time: 0~60s
Measuring Range: (8~650) HBW
Hardness Display: LCD Display，Printable output，internal printer
Brinell Ruler: HBW2.5/62.5 HBW10/100 HBW2.5/187.5 HBW5/125 HBW10/250 HBW10/500 HBW5/750 HBW10/1000 HBW10/1500 HBW10/3000
Magnification of Eyepiece: 20X
Max.height of Specimen: 200mm
Distance from intender to body: 135mm
Min Measuring Unit: 0.625µm
Power supply: AC220+5%,50~60Hz
Dimension: 550x210x750mm
Gross/Net Weight: 160kg/130kg
Executive Standard: GB/T4340、JIS Z2245、ASTM—E92、ISO6507
Standard Accessories:
Main body
20X Digital Measuring Objective
Hardness Block HBW 10/3000
Hardness BlockHBW 5/750
Ø10mm Steel Ball Intender
Ø5mm Steel Ball Intender
Ø2.5mm Steel Ball Intender
Ø200mm Working Stage
Ø60mm Working Stage
Ø40mm Vshape Anvil
Power Cord
Toolbox
232 wiring
Dust Cover
Certificate / warranty card / instruction / packing list
