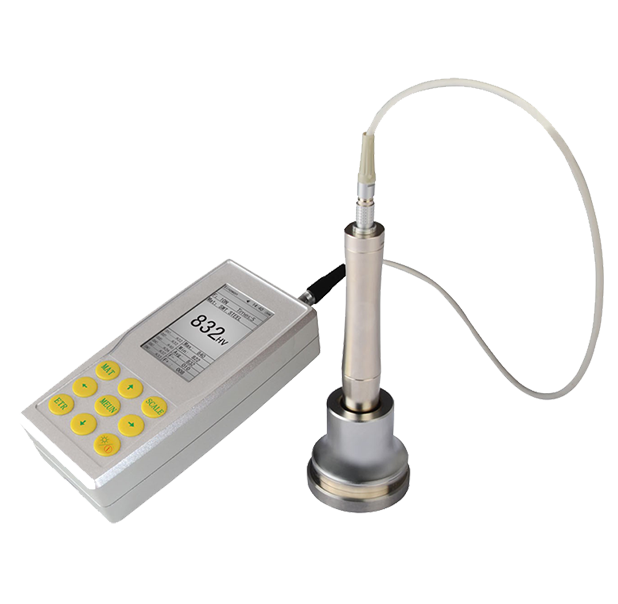

Hoyamo UHS-100 ເຄື່ອງກວດຄວາມແຂງ Ultrasonic (2Kgf)

Loading Force: 2Kgf Manual Probe HP-2K

Indenter: 136°Vickers Diamond Indenter

Measuring Range: HB 85-650HV 80-1599 HRC 20-70HRB 41-100 HRA 61-85.6 HS 34.2-97.3Mpa 255-2180N/mm

Measuring Accuracy: HV±3%HV HRC±1.5HRC HB±3%HB HLD±5HLD

Measuring Direction: Support 360°

Data Storage: To save 1000-groups of measuring data and 20-groups of calibration data

Hardness Scale: HV、HB、HRC, HLD

Data Display: Loading force, Testing-times, Testing result, Average, Maximum、Minimum、Deviation and Conversion scale.

Hardness Indication: LCD display

Operating Environment: Temperature-10℃~50℃ Humidity 30%~80%R.H

Operating Voltage: DC 6V

Instrument Dimensions: 160x80x31mm

Net Weight: Approximate 500g（Without probe）

Manual Probes Features:

● Introduced latest ultrasonic sensor technology

● Obtain accurate hardness value without auxiliary devices

● Support 360° quick measuring

● Excellent human engineering design easy to hold

● Suitable dimension and weight of probe is convenient to control

● Quick and accurate measuring for edge and fixed position of specimen

● Micro indentation, Non- Destructive for specimen
