Accuracy / Repeatability: ±4HL/HRC0.2 (0.3% at HL=800)
Display: High contrast color TFT 240 x 320
Hardness scale: HL/HRC/HRB/HB/HV/HS/HRA/σb
Measuring range: HL170~960/ HRC1.3~74.7/ HRB1.2~139.7/ HB28~1027/ HV45~1221/ HS4.0~112.1/ HRA1.3~88.5/ MPa118~3315N/mm²
Probe:
Digital probe D/C/DC/D+15/DL/E
Wireless probe D/C/DC/D+15/DL/E (optional), Reading probe D (optional)
Materials and conversion curves: 11 common metal materials, 75 curves
Memory: 999 data
Interface: USB / Bluetooth (optional)
Statistics function: Average / Max. / Min. / S. value
Re-calibration: Allowed by user
Indicator: Low battery
Language: English, Chinese, Russian, Korean, French, Italian, German, Turkish, Spanish
Power on/off: Auto / Manual
Power supply: AA alkaline battery / USB power supply
Working environment: -20oC~+70oC
Dimension (mm): 145x70x30
Net weight (g): 145g
Standards: Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
Standard Delivery:
Main unit 1
Digital probe D 1
Test block D 1
Small support ring 1
Cleaning brush 1
Probe cable 1
USB cable 1
Operation manual 1
Test Certificate 1
Carrying case
Optional Accessory:
Digital probe C/DC/D+15/DL/E
Reading probe D
Wireless probe D/C/DC/D+15/DL/E
Special support rings
Standard support ring for probe D
Small support ring
Impact body D
Carbide ball tip D
Test block D with certificate
Test block D w/o certificate

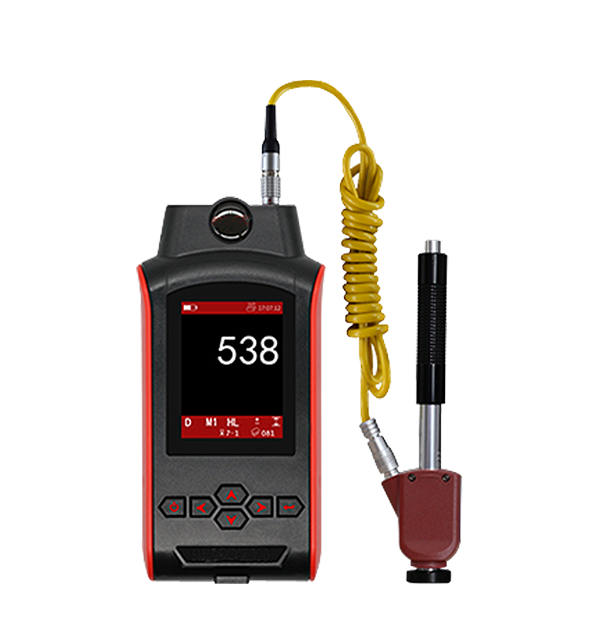

Portable Leeb Hardness Tester
Features:

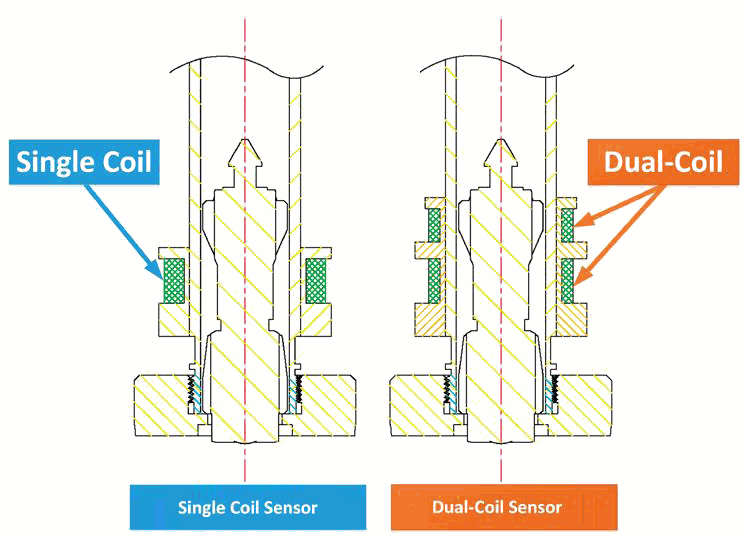

Patent dual- coil technology
All probe used with SH-660 are digital type
Cost- effective with reading probe (optional)

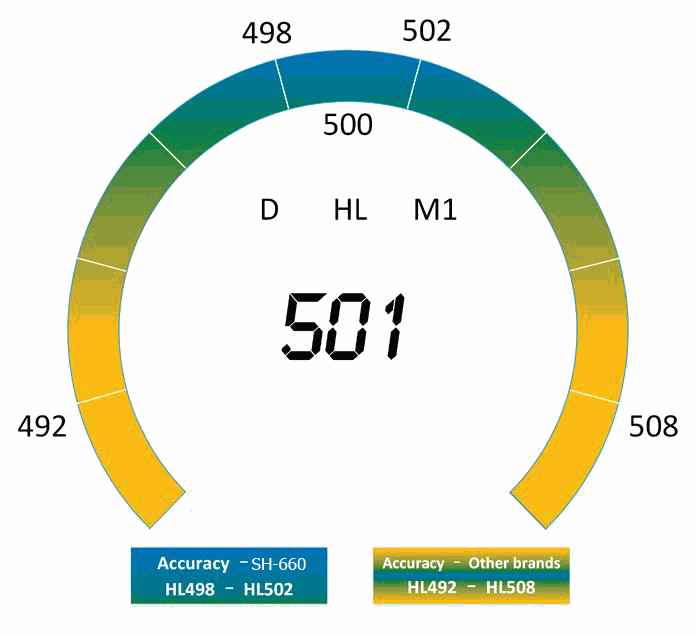

High repeatability accuracy: +/-4 HL (or 0.3% @HL800)
High linear accuracy for any angles
TFT color display
Auto compensate error for different impact direction
Powered by AA batter y or USB power supply
The tester can be attrac ted to the work piece with magnetic base (optional)
Statistics value can be calculated automatically
Up to 10 kinds of menu language
Data managing software on PC
Power on/off automatically or manually
