Dia: 200-- 400mm
Initial Test Force: 10 kgf
Total Test Force: 60 kgf, 100 kgf, 150 kgf
Force Applying Method: By Screw
Test Head:
120°Diamond Indenter
1.588 mm carbide alloy ball
Testing Resolution: 0.5HR
Accuracy: Meets the requirements of ISO6508ASTM E 18
Test Range: HRA, HRB, HRC…HRV etc, 15 scales.
Dimension: 700x270x470mm
Weight/ Weight/ Gross Weight: 4.8kg/13kg
Application Range: All metals including iron, steel copper, aluminium, etc.
Standard Delivery:
Instrument Main Body
120° Diamond Indenter
V Anvil
Spare Magnifier
Carrying Case
Warranty Card / Qualified Certificate
Rockwell Hardness Block
1.588 mm Carbide Alloy Ball Indenter
Flat Anvil
Operation Manual
Packing List
Application:

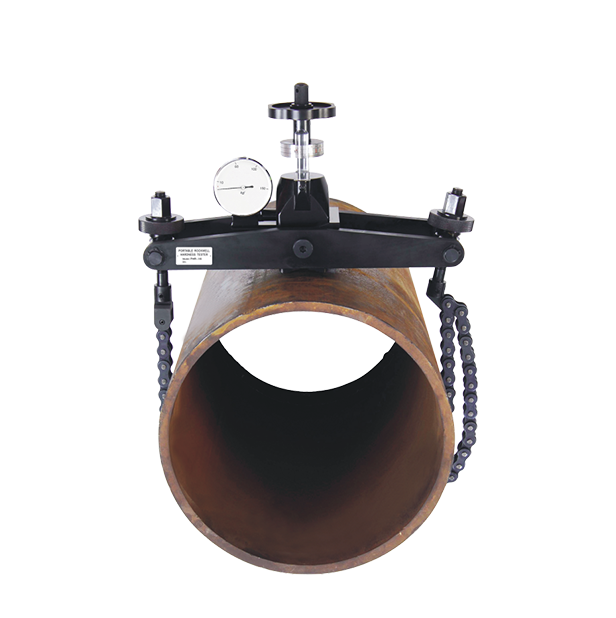

PHR Chain Clamp Rockwell Hardness Tester which can test the hardness of cylindrical workpieces such as pipes, shafts, rollers accurately on-site. The test principle and accuracy comply to standard ISO 6508 and ASTM E110. Tested by National Institute of Metrology with tolerance ＜1.5HRC, equivalent to bench hardness tester. So this kind of manual Rockwell hardness tester is usually used for manufacturing inspection and acceptance inspection to replace Leeb hardness tester with lower accuracy.
Features:
On-site testing the hardness of large pipes and shafts accurately on-site.
Anvils testing various dimensions and shapes work piece by using different anvils.
Application Chain fastened around the work piece before the force is applied.
Relevant Standards Comply to standard ISO 6508 and ASTM E18, E110.
Indenter Indention inspected by standard Rockwell hardness tester.
