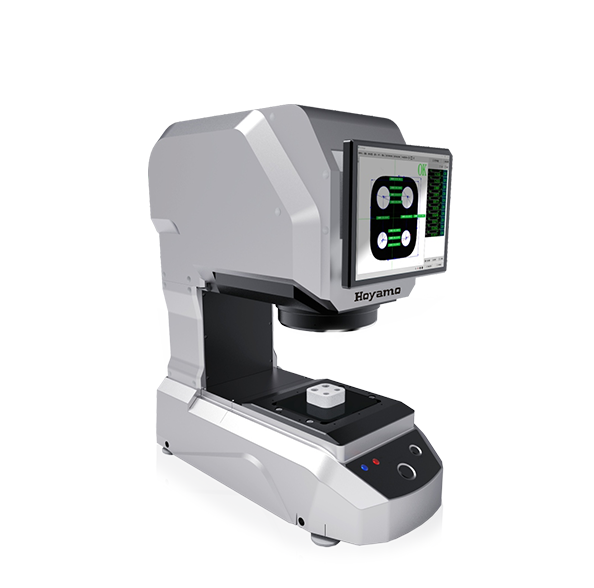

Hoyamo IVS-867 ລະບົບການວັດແທກວິໄສທັດທັນທີ (80mm, 60mm, 70mm)

Measurement Range:

X: 80mm

Y: 60mm

Z: 70mm

FOV:

High Precision: 18.3mm x 13.7mm

Large Field: 80mm x 60mm

Repeatability:

High Precision: ±1μm

Large Field: ± 2.5μm

Mini. Unit: 0.1μm

Accuracy:

High Precision:

Without Stitching: ±2 μm

With Stitching: \

Large Field:

Without Stitching: ±5 μm

With Stitching: \

Weight: 40KG

Optic System:

Camera: 1200M Pixel; 500M Pixel

Lens: Dual Telecentric Lens

Profile illumination: White Light

Transmission illumination: Green Light

Loading Capacity: 5KG

System: AI-Image (Self-Developed)

Power Supply: 220V±10%,50Hz

Working Environment: Temperature: 20±3℃, Humidity: 30-80%, Vibration: ＜0.002g,15HZ

Dimension: 310x625x748

Introduction: Instant Vision Measurement System IVS-6080 usus Dual Telecentric High Resolution Optical Lens, combines high precision image analysis algorithm, and adopts One-Touch Measuring Principle. Under CNC Mode, only to press the start-button, the system can instantly automatically according to the shape of parts recognize the measuring object, match the template, build measuring evaluation and report, completing One Button instant precision measurement.

Advantage:

Fast Measurement: One button can measure the products in the field of vision.

Easy Operation: The software interface is simple and easy to understand, and anyone can get accurate test results.

Auto-Management: The measurement results are automatically saved when the measurement is completed, and the test report can be generated by clicking the button.
