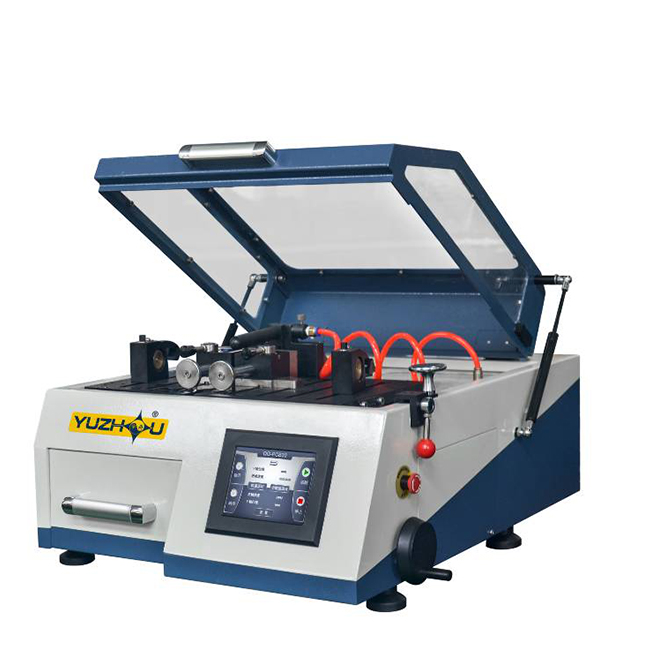

Hoyamo HQG-201 ເຄື່ອງຕັດຄວາມຖືກຕ້ອງດ້ວຍມືອັດຕະໂນມັດ (500-3000rpm, Cutting Diameter Φ 30mm)
Cutting method: manual/automatic, spindle feed or platform feed
Feed speed: manually controlled/automatically adjustable 1-36mm/min (Adjustment step length is 0.1mm/min)
Cutting sheet size: Φ180×0.8×Φ22mm
Maximum cutting diameter: Φ 30mm
Maximum stroke: spindle stroke 140mm, platform stroke 230mm
Spindle speed: 500-3000r/min
Motor power: 1.2kW
Cutting platform size: 245×415mm, 8mm T-slot
Cutting fixture: Quick fixture, jaw height 45mm; vertical fixture, opening 27mm
Display and control: 5.7 inch touch screen display and control
Power input: single phase 220V, 50Hz, 8A
Water pump flow: 16L/min
Dimensions: 620×740×380mm
Net weight: 80kg
Standard configuration:
Host
Cutting disc
Cutting fluid
Stay wrench
Allen wrench
Vertical fixture
Power cable
Manual
Certificate of conformity
