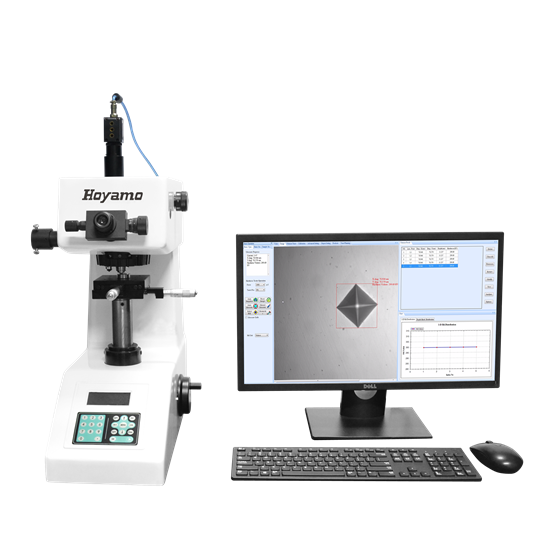

Type/software: Manual
Hardness Scale: HV
Hardness Conversion: HV, HR, HRC, HB, HK
Loading Force:
N: 0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
gf: 10、25、50、100、200、300、500、1000
Indentation Measurement: Analogue Eyepiece with Mechanic Micrometer (To measure the indention by AutoVicker Testing Software system)
Loading Control: Automatic (Loading, Dwell, Unloading)
Magnification of Microscope: Observation:10x/40x; Measurement:10x/40x
Magnification on of Eyepiece: 10x Analogue Eyepiece
Dwell Time: Adjustable 5~60s
Testing Range: 1HV~3000HV
Analogue X-Y Anvil: Size:100x100mm; Travel:25 x25mm; Resolution: 0.25um
Optical Channel: Two-Channel: Eyepiece/camera switchable
Illumination: Adjustable Halogen light-source
Max. Height of Specimen: 90mm
Instrument Throat: 120mm
Operating Temperature: 23±5℃
Operating Humidity: <65%
Power Supply: AC220V/50Hz; AC110V/60Hz
Dimension (LxWxH): 530×290×490mm
Gross/Net Weight: 50Kg/40Kg
Software: HDS6020
Standard Delivery：
MicroVickers Intender
X-Y Working Stage
Hardness Block (700~800) HV1
Flat Precision Clamp
Hardness Block (400~500) HV0.2
Digital Micrometer Head
Camera Adapter
10x Analogue Eyepiece
10x Objective
40x Objective
Thin-Piece Clamp
Warranty Card / Qualified Certificate/ Operation Manual / Packing List
Unequal Specimen Clamp
USB CMOS Camera
Dust Cover
Toolbox
Power Cord
Filament Clamp
Flat Precision Clamp
Dell PC System
Vickers Measuring Software
