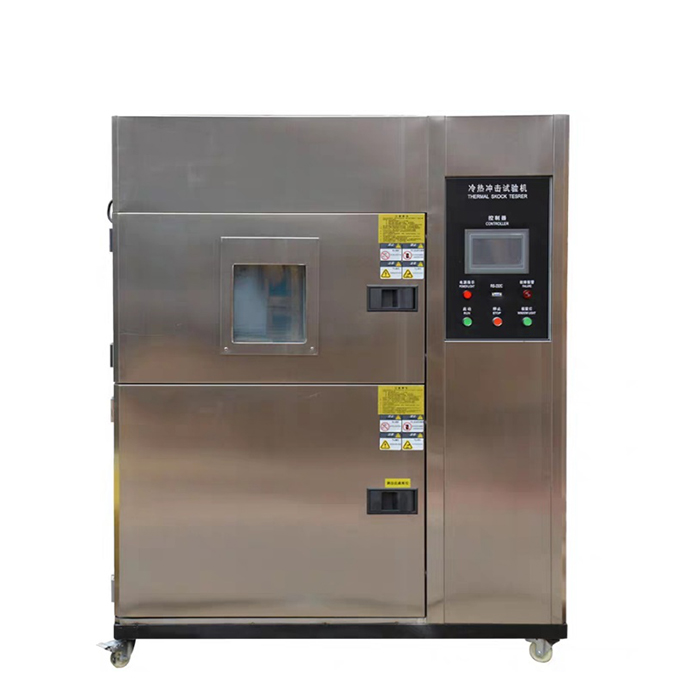

Hoyamo HLR-50L ເຄື່ອງທົດສອບອາການຊ໊ອກຄວາມຮ້ອນ (-40℃～150℃)

Temperature Range: -40℃～150℃

High Temperature Test Chamber: +50℃～150℃

Low Temperature Box: 0℃～-60℃

Temperature Fluctuation: ±2℃

Temperature Error: ±2℃

Heating Rate: Normal Atmospheric Temperature～150℃≤50min

Cooling Rate: Normal Atmospheric Temperature～ -60℃≤60min

Lower Limit Temperature of Refrigeration: ≤-60℃

Shock Temperature: +150～-40℃

Dimensions of Working Chamber: 350×350×400mm(width * depth * height)

Overall Dimension: About 1330×1560×1860mm(width * depth * height)

Power Supply: 380V±38V 50Hz±1Hz

Power: About 18.5Kw

Thermal Recovery Time: ≤5min

Load Bearing of Sample Rack: Within 5kg

Cooling Mode: Air cooling

Production Feature:

Make all kinds of items in the shortest time to complete the test

PID system of all digital automatic control, easy to operate

Test the chemical change or physical damage caused by thermal expansion and cold contraction within the shortest time

Binary cascade air cooling refrigeration system composed of totally enclosed compressor

Double circuit high precision LCD touch screen temperature controller

New PWM cold control technology to realize low temperature and energy saving operation
