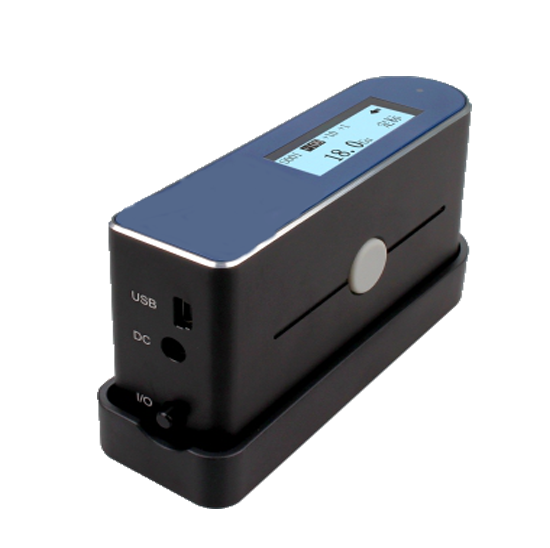

Hoyamo HGZ-1 Gloss Meter (0-2000Gu)

Measurement Range: 0-2000Gu

Application: Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material.

Instrument Dimensions: 122x34x60mm

Projection Angle: 60°

Measuring Spot: （ellipse: long axis*minor axis）8mm*4mm

Output: connect the micro printer to realize real-time output of measured data

Division Value: 0.1Gu

Repeatability: 0.2Gu

Reproducibility: 0.4Gu

Indication Error: 1.0Gu

International Standard 60°: ISO－2813、ASTM－C584、ASTM－D523、DIN－67530、ASTM－D2457、JND-A60、JND-P60

National Standard 60°: GB 9754、GB 9966、GB 8807

Standard Accessories: Power adapter/user manual/warranty certification/standard board

Optional Accessories: micro-printer

Production Feature:

This gloss meter is designed and manufactured with the reference to the international standard ISO 2813 and China national standard GB/T9754;

Technical parameters are in accordance with ASTM D2457, ASTM D523 and GB/T13891, GB/T7706, GB/T8807 standard;

All performance indexes meet the primary working machine requirements of metrological verification procedures of national standard JJG696-2002 "mirror gloss meter and gloss board";

Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material.
