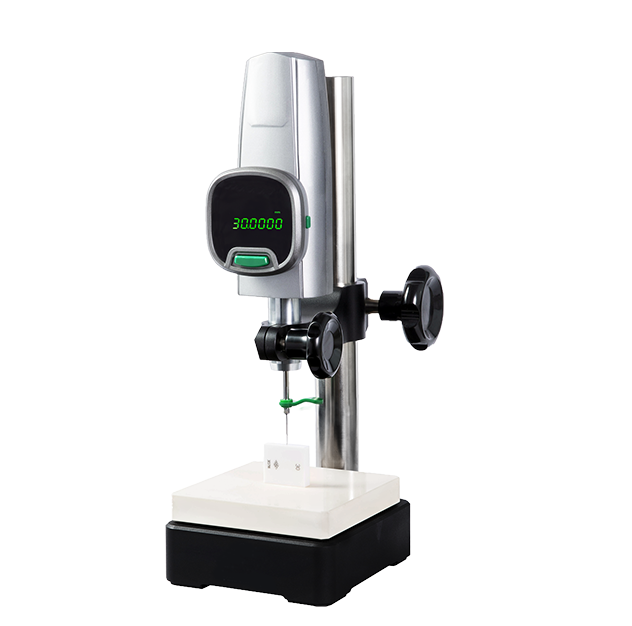

Hoyamo HG50-1313B ເຄື່ອງວັດແທກຄວາມສູງດິຈິຕອນ (0-50mm)

Measurement Range: 0-50mm

Accuracy: ≤1.5um

Minimum: 0.5μm、1μm(Switchable)

Measurement Speed: Maximum 5000mm/s

Force: 1.0-1.5N

External Output: Data Interface、USB

Display: 8 Bit Green High Brightness LED Display

Probe: Spherical Probe, Flat Probe, Needle Probe

Unit: mm、inch( Convertible )

Operating Environment: Temperature：0-40°C Humidity：20-80%

Measuring Table: 130mmx130mm Ceramic

Power Adapter: Input：AC100-240V50/60HZ Output：DC5V/1A

Standard Accessories: ceramic Table，Spherical Probe, Flat Probe, Needle Probe

Optional Accessories: Special-shaped Probe, Mobile power supply

Dimension: 200x138x397mm

Weight: 11.6kg

Production Feature:

High Accuracy≤1.5um, High Resolution 0.5um

Height、Depth、Thickness、Flatness Measurement

Steps and Deep Hole Measuring

Reset from Anywhere

Replaceable Probe

8-digit Highlight LED Digital Display Device

Optional mobile power supply

Stable and Hard-Wearing Cast Iron Base

High Accuracy Ceramic Measuring TableProduction Feature:

High Accuracy≤1.5um, High Resolution 0.5um

Height、Depth、Thickness、Flatness Measurement

Steps and Deep Hole Measuring

Reset from Anywhere

Replaceable Probe

8-digit Highlight LED Digital Display Device

Optional mobile power supply

Stable and Hard-Wearing Cast Iron Base

High Accuracy Ceramic Measuring Table
