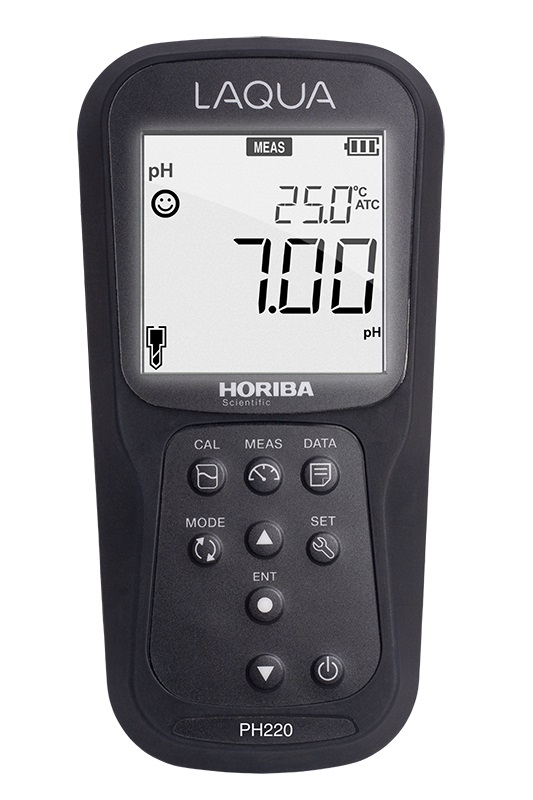

HORIBA PH220 LAQUA pH/ORP/Temp (°C/°F) pH Meter

-pH Range: -2.00 to 16.00 pH

Resolution: 0.01 pH

Accuracy: ± 0.01 pH

Calibration Points: Up to 5 (USA & NIST), Up to 6 (DIN)

Buffer Options: USA, NIST, DIN

-ORP Range: ± 2000 mV

Resolution: 0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV)

Accuracy: ± 0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV)

Calibration Option: Yes

-Temperature Range: -30.0 to 130.0 °C / -22.0 to 266.0 °F

Resolution: 0.1 °C / °F

Accuracy: ± 0.5 °C / ± 0.9 °C

Calibration Option: Yes

Memory Data: 1000

Auto Log Data: Yes

Real-time Clock

Date & Time Stamp

Measurement Modes: Auto Stable, Auto Hold, Real Time

Offset / Average Slope Display: Yes

Calibration Alarm: Yes (Programmable: up to 90 days)

Auto Shut-Off: Yes (Programmable: up to 30 minutes)

Electrode Status: Yes (On screen display)

Diagnostic Messages: Yes

PC Communication

Printer Communication

Meter Inputs: BNC (for conductivity electrode), phono (for temperature sensor)

Meter Output: phono (for software upgrade only)

Display: Custom LCD with backlight

Housing: IP67, shock & scratch resistant, non-slip

Power Requirement: 2 x AA batteries

Battery Life: > 500 hours

Meter Dimensions: 160 (L) x 80 (W) x 40.60 (H) mm

Meter Weight: Approx. 260 g (with batteries) / 216 g (without batteries)

PD210 Meter

• 9652-20D Gel pH electrode, 2 m cable

• 9552-20D Galvanic DO probe, 2 m cable

• 4.01, 7.00, 10.01 pH Buffers (60 ml each)

• 2 x AA Batteries

• Electrode Adapter

• Carrying case

• Manual & Quick Guide
