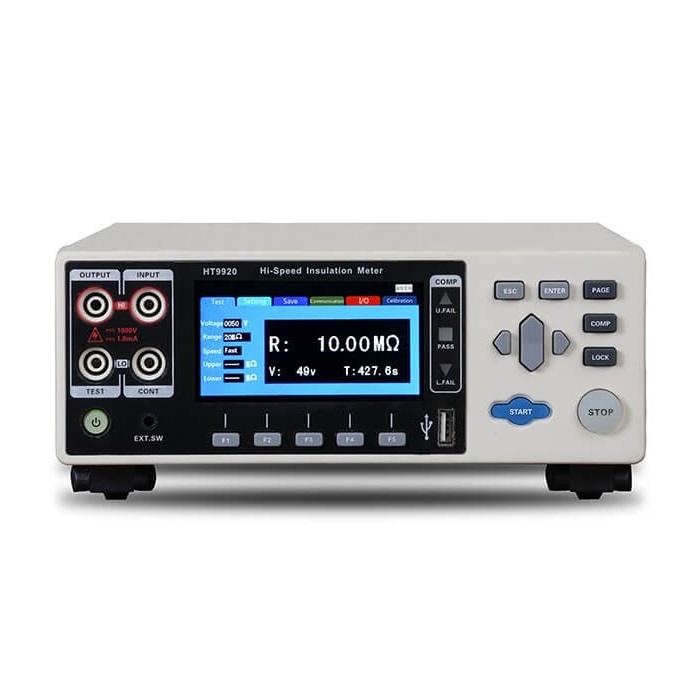

Hopetech HT9920 Insulation Resistance Tester (0.1 ~ 9999MΩ)
Display: 3.5 inch TFT-LCD display
Measurement Parameters: Insulation resistance
Measurement Range: 0.1 ~ 9999MΩ (5 ranges)
Basic Accuracy: ±2% rdg. ±5 dgt.
Measuring Voltage: DC 10~1000V, 1.8mA
Measuring Speed: 50ms(fast), 500ms(slow)
Connection Error Display:
High voltage side open circuit display “ContHi”
Low voltage side open circuit display “ContLo”
Output open circuit display “ContHL”
Short Circuit Error Display: “SHORT”
Discharge Current: 12mA constant current discharge
Comparator: PASS/L.FAIL/U.FAIL
Data Storage: 10 sets of panel setting data can be recorded
Trigger: IO trigger, internal trigger, manual trigger, bus trigger
I/O Type: PNP or NPN
Interface: External IO, analog, LAN,RS232
Power Supply: Voltage: 100V ~ 250V AC, Frequency:50Hz/60Hz
Size & Weight: Size (L*W*D):325mm x 215mm x 96 mm, 2kg
Accessories: HT9921 test clip, PB36 connector, HT9800 communication cable, power cord (Options available )
