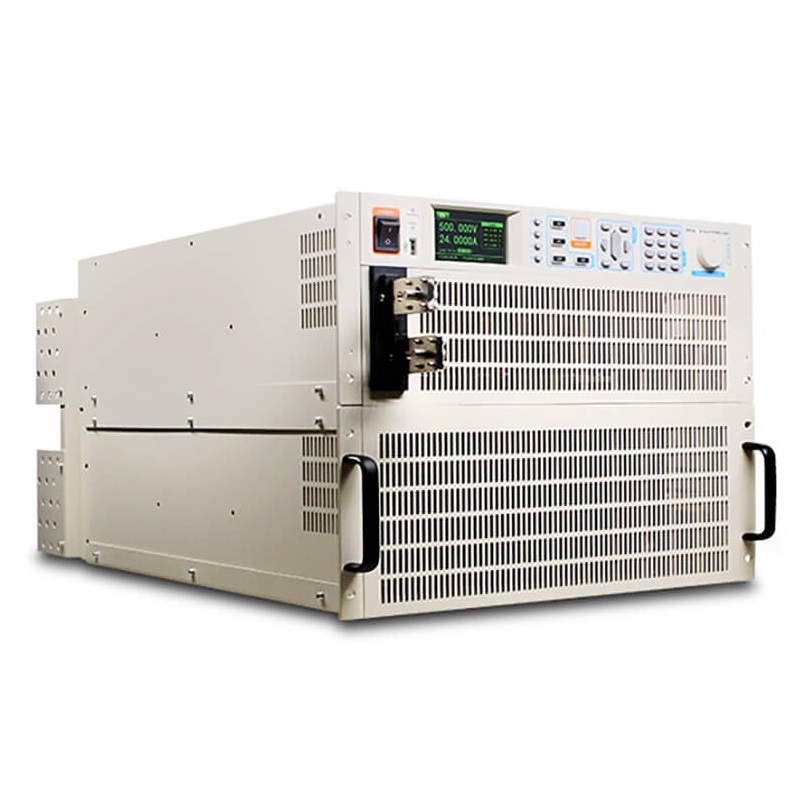

Hopetech HT8123C-M ພະລັງງານສູງ Programmable DC Electronic Load (150V, 500A, 12kW)
Input voltage/Current:
15V/50A
150V/500A
Input power: 10kW
Min. operation voltage: 1.5V@500A
Min rise time@ FS current: 25us
CV mode
Range/Resolution:
15V/0.2mV
150V/2mV
Accuracy: ±(0.03%+0.02%FS)
CC mode
Range/Resolution:
50A/0.7mA
500A/7mA
Accuracy: ±(0.03%+0.02%FS)
CR mode
Range: 0.01Ω~3kΩ
Resolution: 16Bits
Accuracy: ±0.1%
CP mode
Range: 12kW
Resolution: 16Bits
Accuracy: ±（0.1%+0.1%FS）
Dynamic mode
Ta＆Tb: 10us~50s
Min.resolution:10us
Min. rise time: 3A/us
Read-back voltage
Range/Resolution:
50V/0.1mV
500V/1mV
Accuracy: ±(0.015%+0.01%FS)
Read-back current
Range/Resolution:
50A/0.3mV
500A/3mA
Accuracy: ±(0.03%+0.02%FS)
Read-back ripple
Range (R/I): 150V/500A
Bandwidth: 10Hz~250kHz
Accuracy: ±1%
Protection range
Over-power protection: 12600kW
Over-current protection: 525A
Over-voltage protection: 158V
Over-temperature protection: ≒85℃
Specification
Dimension (L*W*D): 624mm*483mm*177.8mm
Gross Weight: 50kg
