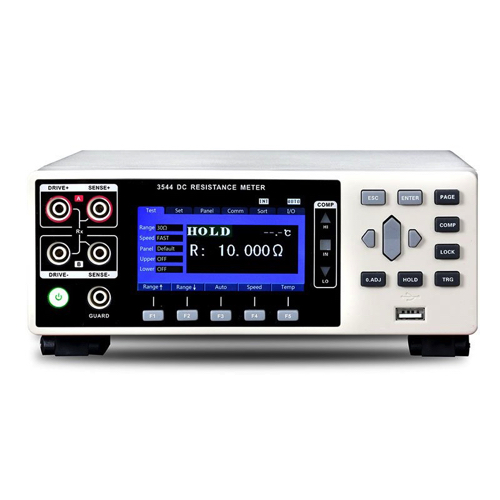

Hopetech HT3544-12H ເຄື່ອງທົດສອບຄວາມຕ້ານທານຫຼາຍຊ່ອງທາງ (3mΩ~3MΩ)
Channel No.: 12-channel
Display: 3.5 inch TFT-LCD display
Measurement items: ESR, temperature
Basic accuracy: 0.1%±10 reading (3mΩ,30mΩ,3MΩ); 0.05%±4 readings;0.02%±2 readings(the other ranges)
Measurement range : 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3kΩ/30kΩ/300kΩ/3MΩ
Measurement speed: FAST(50Hz:21ms, 60Hz:18ms), SLOW(200ms)
Maximum test current: DC 1A, Max:5.5V
Temperature: Range:-10°C ~60°C Accuracy:±1°C
Correction: Short-circuit reset for all ranges
Comparator: HIGN/IN/LOW sorting,10 bin-out
Internal data storage: Support with PC software and store in PC
Trigger: Internal/external/manual trigger
Signal source: AC 1kHz, Test current: <150mA
Resolution: 0.1μΩ
Other functions: temperature correction, power frequency setting
Interface: External I/O,LAN,RS232
Power supply: Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz;
Rated Power: 10W
Dimensions: 325 mm (L) x215mm (W) x 96.5mm (D),without sleeve
Accessory : Standard:HT9363A,HT9348,power cord
Weight: 2kg
