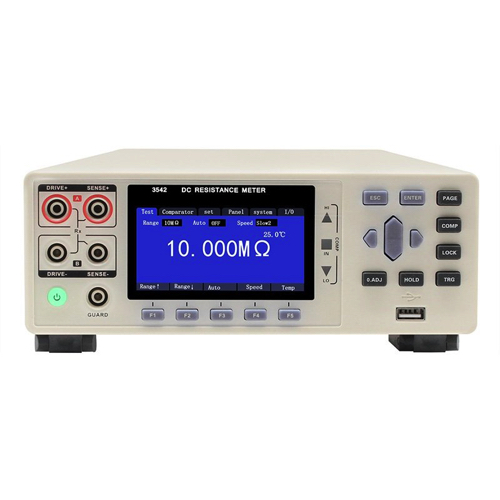

Hopetech HT3542-12H ເຄື່ອງວັດຄວາມຕ້ານທານ DC ຄວາມແມ່ນຍໍາສູງຄວາມໄວສູງ (20mΩ~10ΜΩ)
Channel No.: 12-channel
Display: 3.5 inch TFT-LCD
Measurement parameters: DC resistance
Resolution: 0.1μΩ
Test scope: 10mΩ~10MΩ, 9 ranges
Measuring current: DC 1A-0.5uA
Measuring accuracy: ±0.01%rdg.±0.001%f.s.
Measuring speed: FAST(2.2ms), MED(50Hz:21ms, 60Hz:18ms), SLOW1(102ms), SLOW2(202ms)
Measurement range: 20mΩ/200mΩ/2000mΩ/20Ω/200Ω/2000Ω/20kΩ/200kΩ/2000ΚΩ/10ΜΩ
Signal source: 1A DC, Max:5.5V
Temperature: Range: -10℃~60℃
Accuracy: 1℃
Humidity range: 23℃, less than 80RH
Calibration: Short-circuit reset for all ranges
Comparator: 10-bin sorting, output signal HIGH/IN/LOW
Data storage: Support with PC software and store in PC
Trigger: Internal, manual, bus trigger
Other: Test lead anomaly detection
Interface: External IO, LAN,RS-232
Power supply: Voltage:100VAC～256VAC; Frequency: 50Hz～60Hz; Rated power: 15VA
Size & weight: 325mm*215mm*96.5mm(L*W*H) 2kg
Accessories: HT9348 temperature probe, PB36 connector, HT9344 test clip, HT9800 communication cable, power cord
